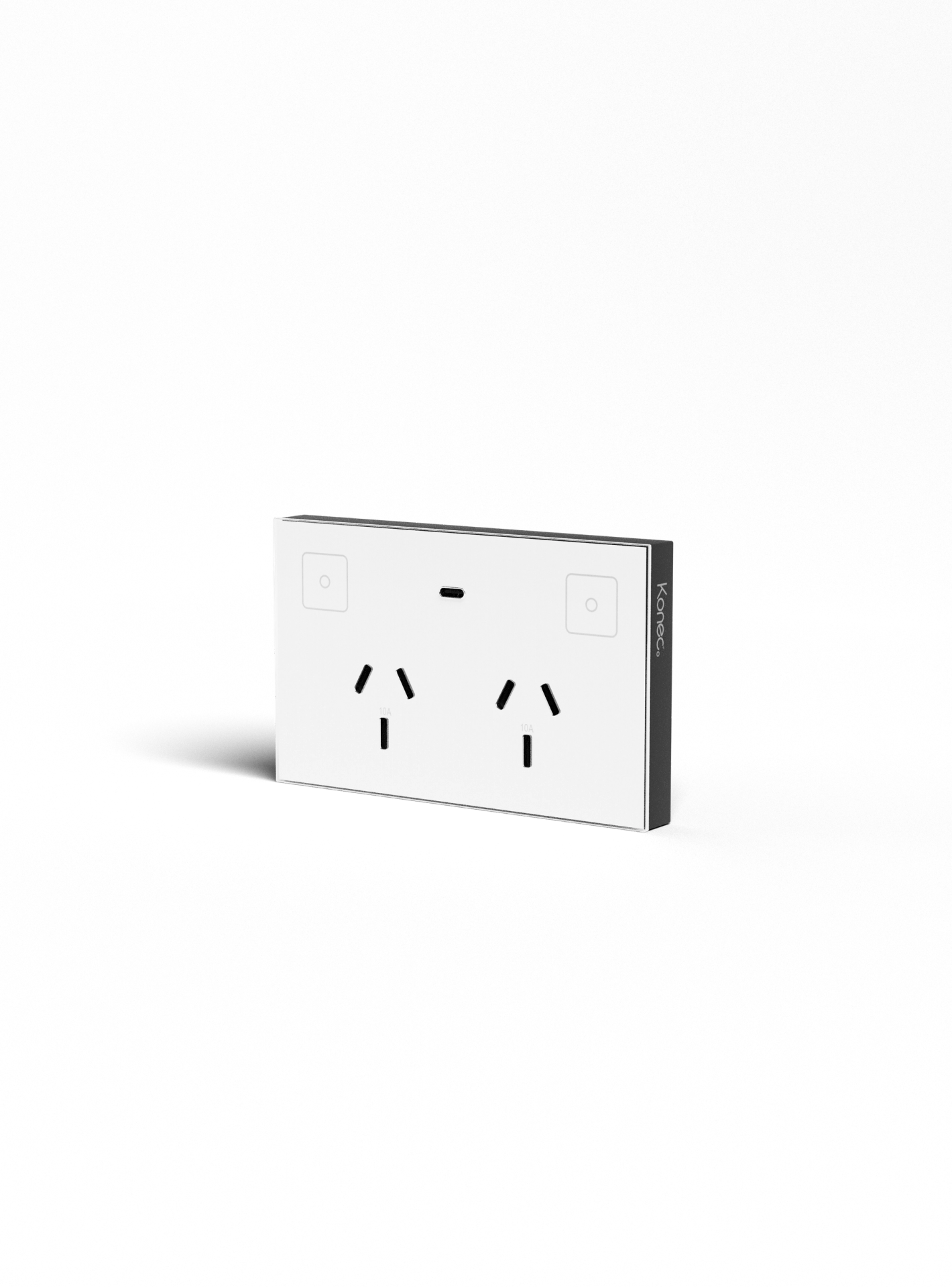

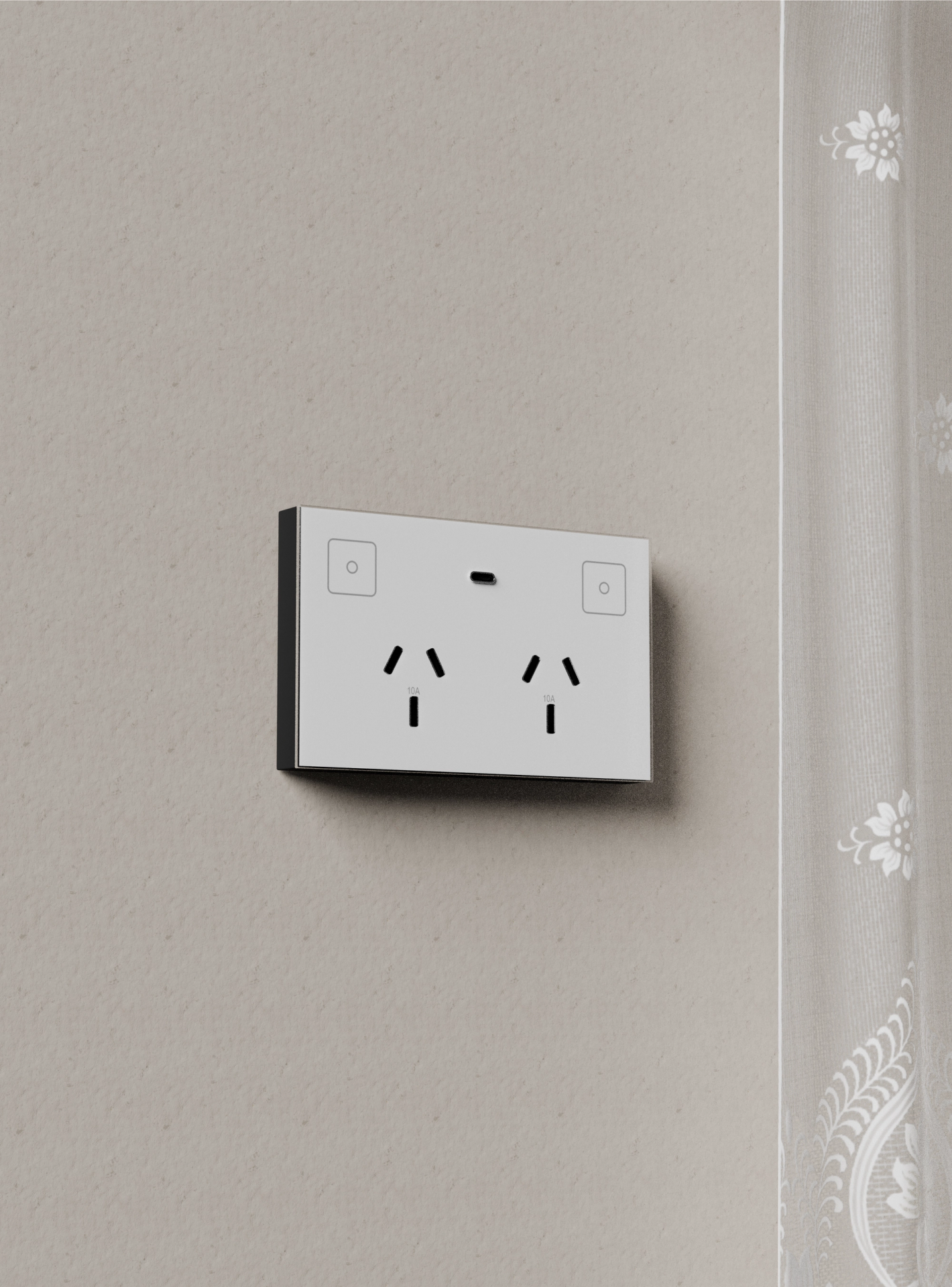

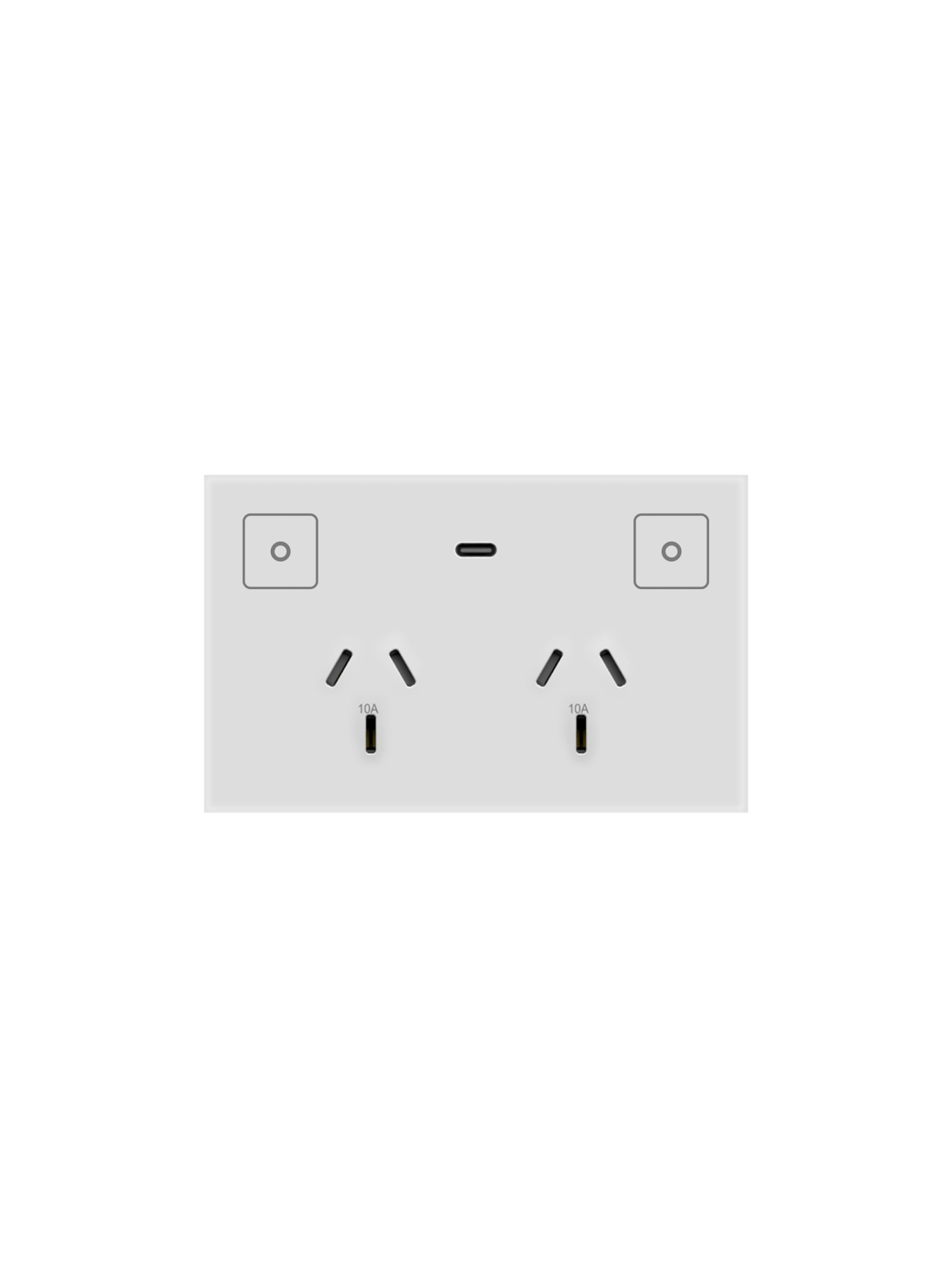

Konec Smart Double Power point K118 Glass White
Konec Smart Double Power point K118 Glass White
Offering remote access and advanced smart home automation controls without special wiring requirements. Designed with versatility in mind, the capacitive touch sensor switches blend seamlessly with the Konec Smart Switch, delivering a sleek, cohesive, and flush finish for any indoor space.
Offering remote access and advanced smart home automation controls without special wiring requirements. Designed with versatility in mind, the capacitive touch sensor switches blend seamlessly with the Konec Smart Switch, delivering a sleek, cohesive, and flush finish for any indoor space.
Model:
KGD-K118-2S-GLA-WH-Z
SKU:
KSS00522
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KGD-K118-2S-GLA-WH-Z
SKU:
KSS00522
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
General Specifications
General Specifications
General Specifications
App Control
Tempered Glass
LED Indicator
Scene Control
Schedule
App Control
Tempered Glass
LED Indicator
Scene Control
Schedule
App Control
Tempered Glass
LED Indicator
Scene Control
Schedule
App Control
Tempered Glass
LED Indicator
Scene Control
Schedule
Product Specs
Product Specs
Product Specs
Input Voltage
• AC 110-240V, 50/60Hz
Rated Current
• 10A x 2 (Resistive Load)
Standby Power Consumption
• ≤ 0.5W
Max. Load
• 2400W x 2
Operating Frequency
• 2.400~2.483GHz
Transmit Power
• Max. 20dBm
Type-C Output
• DC 5V/2A
Protocol
• Zigbee
Operating Temperature
• -10℃ ~ 55℃
Operating Humidity
• ≤ 80%RH (Non-Condensing)
Indicator Light
• Blue LED
Input Voltage
• AC 110-240V, 50/60Hz
Rated Current
• 10A x 2 (Resistive Load)
Standby Power Consumption
• ≤ 0.5W
Max. Load
• 2400W x 2
Operating Frequency
• 2.400~2.483GHz
Transmit Power
• Max. 20dBm
Type-C Output
• DC 5V/2A
Protocol
• Zigbee
Operating Temperature
• -10℃ ~ 55℃
Operating Humidity
• ≤ 80%RH (Non-Condensing)
Indicator Light
• Blue LED
