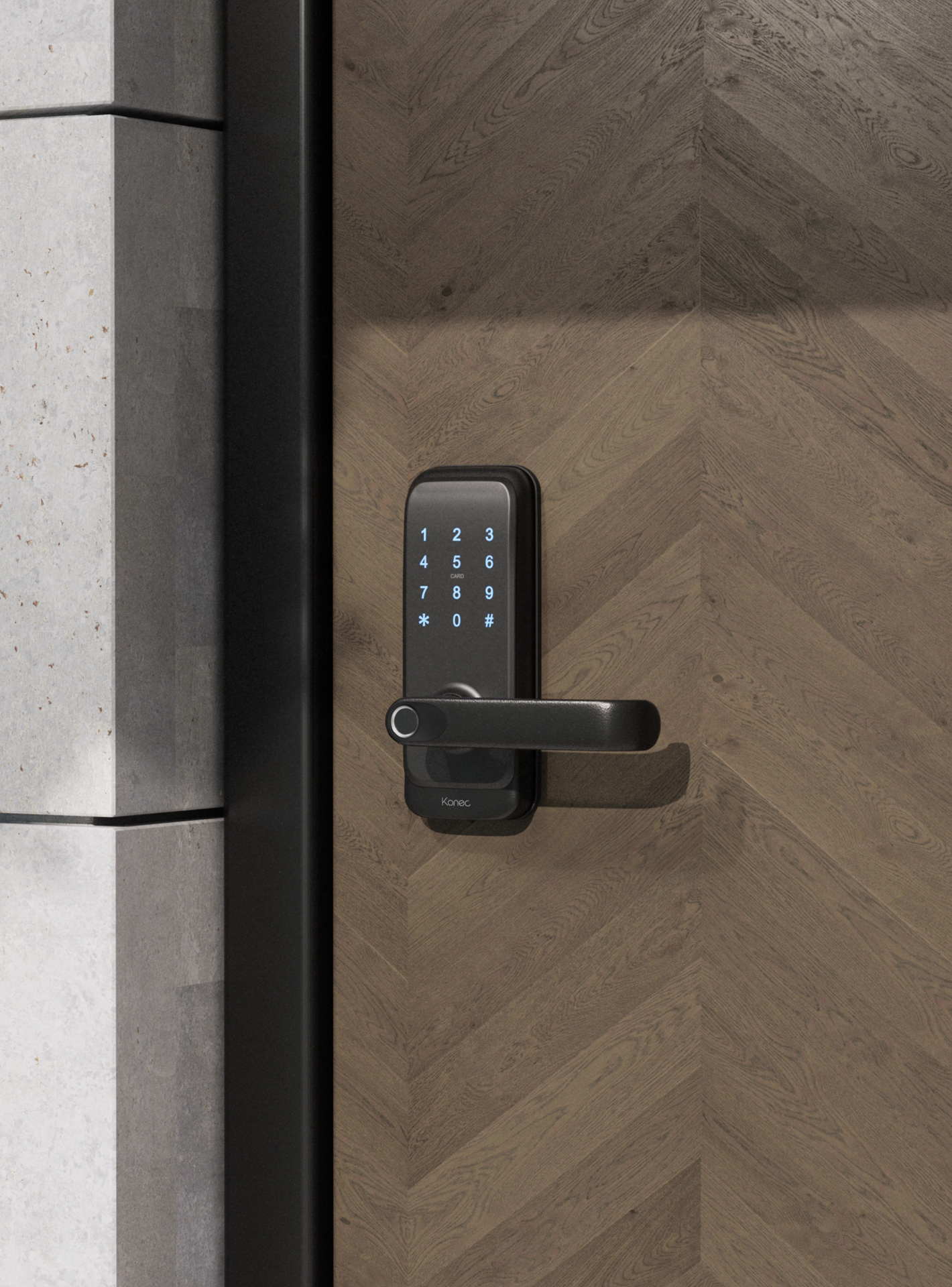

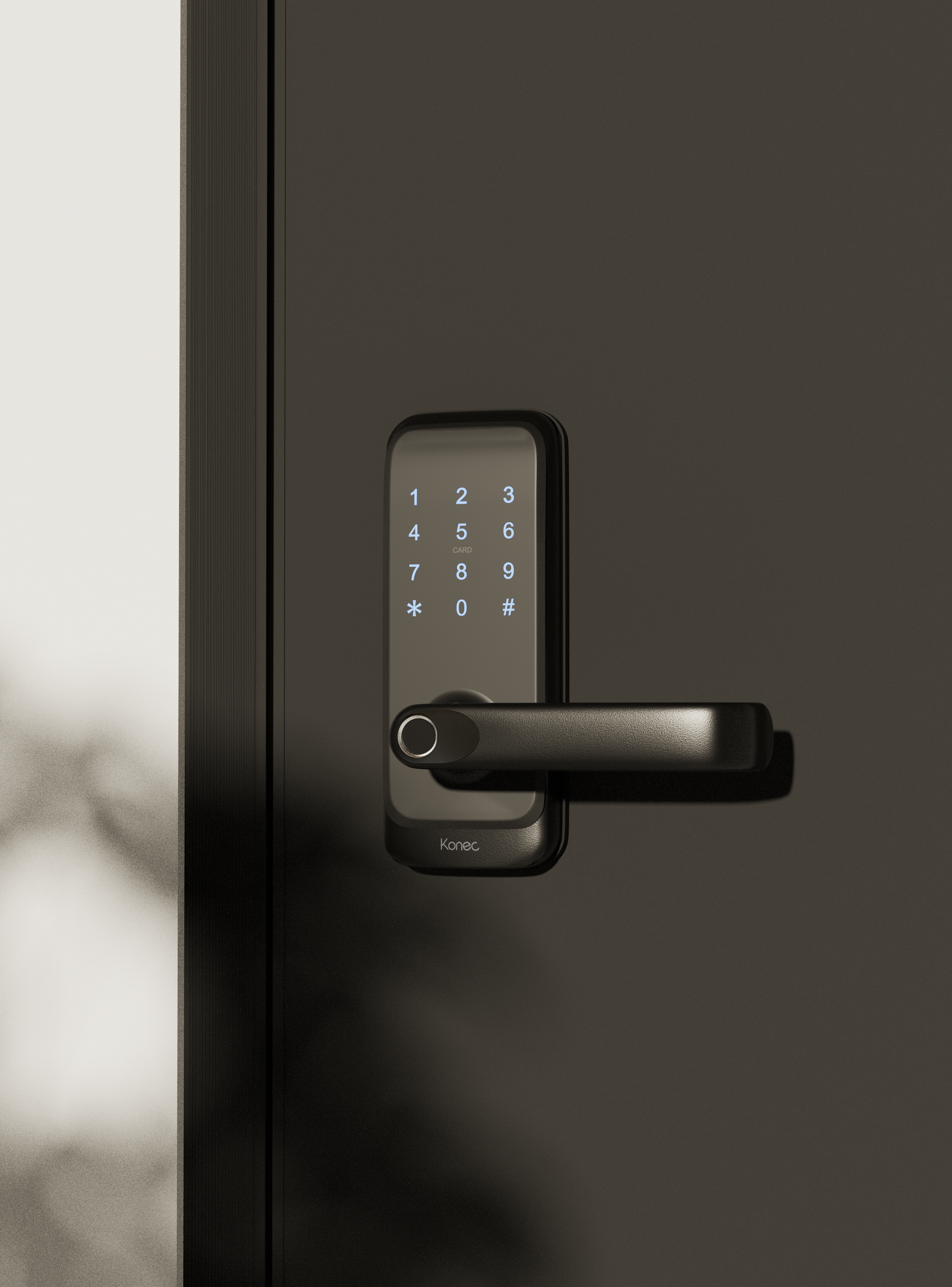

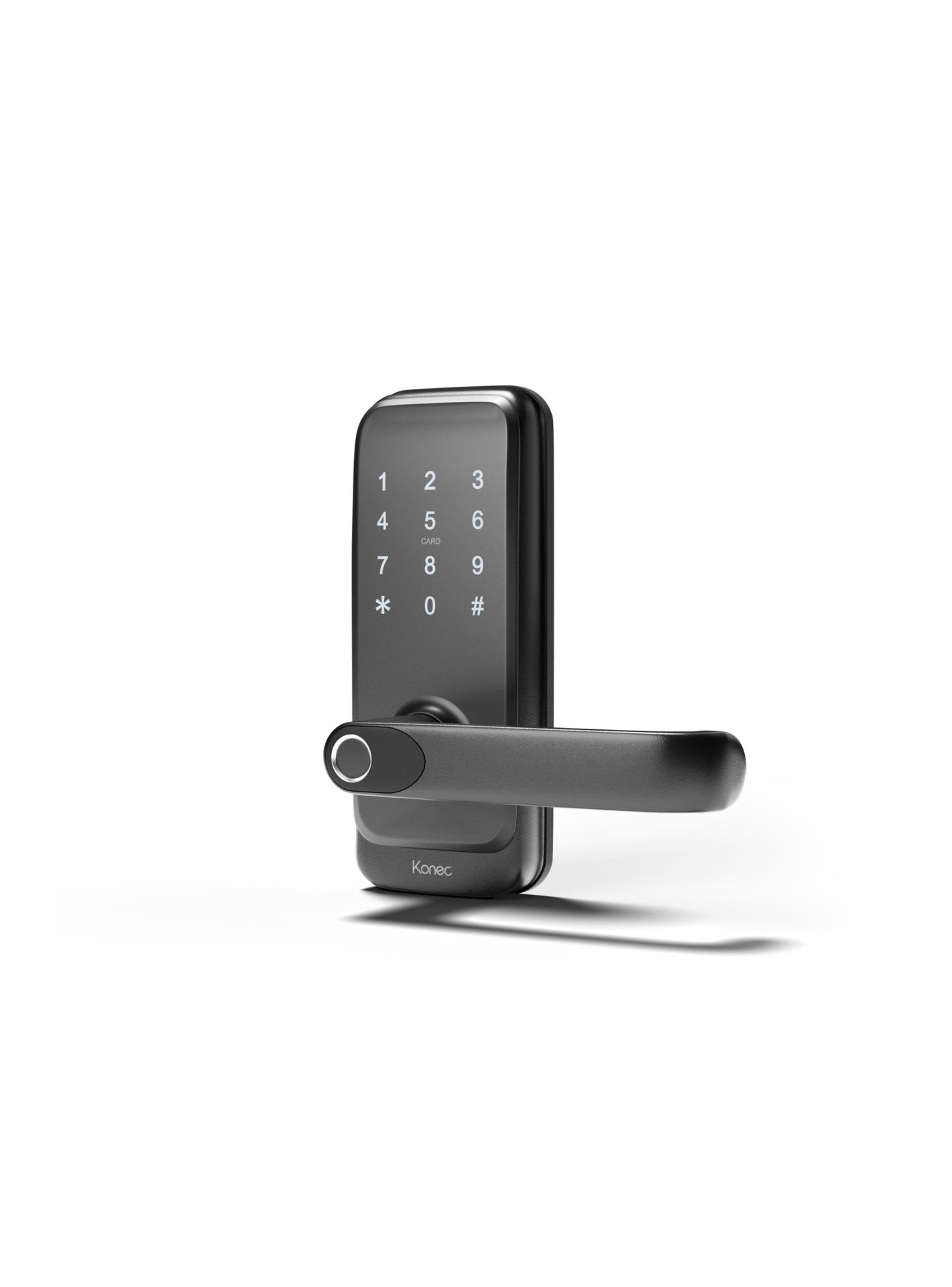

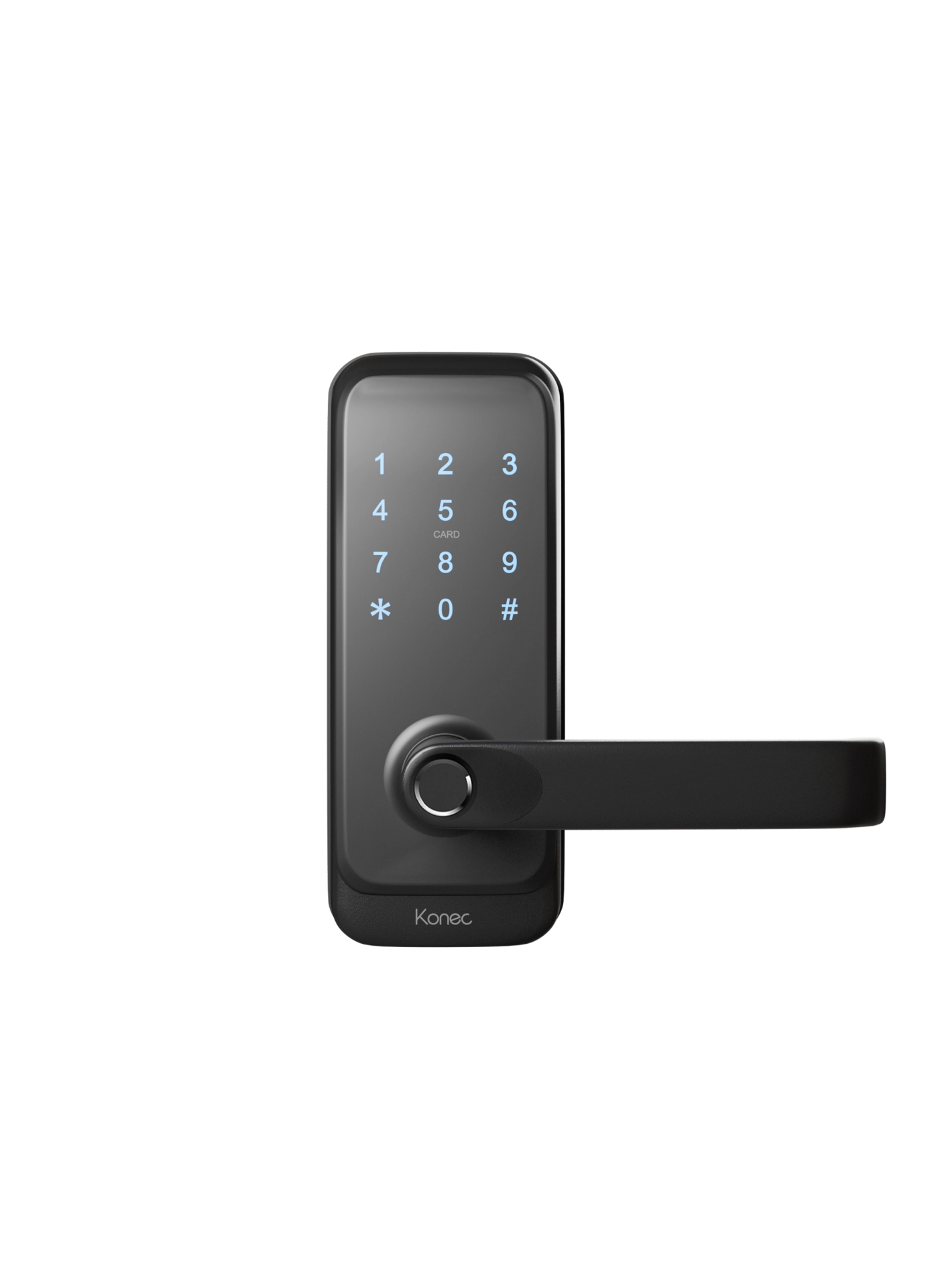

Konec Smart Lock H15B BT Black(Fire Rating:120M/30M) - Packed with Gateway
Konec Smart Lock H15B BT Black(Fire Rating:120M/30M) - Packed with Gateway
Embrace the simplicity and comfort of your smart home, beginning with your smart door lock. Engineered for fire protection, the Konec smart lock range seamlessly combines safety and convenience with high-quality designs.
Embrace the simplicity and comfort of your smart home, beginning with your smart door lock. Engineered for fire protection, the Konec smart lock range seamlessly combines safety and convenience with high-quality designs.
Model:
KLI-H15B-YB-KC
SKU:
KSL00221
Certifications:
RCM
Colours:
Black
Connection Protocol:
Bluetooth
Model:
KLI-H15B-YB-KC
SKU:
KSL00221
Certifications:
RCM
Colours:
Black
Connection Protocol:
Bluetooth
More
General Specifications
General Specifications
General Specifications
App Control
Emergency Power Supply
Fire-rated
Multi-Unlocking
Scene Control
App Control
Emergency Power Supply
Fire-rated
Multi-Unlocking
Scene Control
App Control
Emergency Power Supply
Fire-rated
Multi-Unlocking
Scene Control
App Control
Emergency Power Supply
Fire-rated
Multi-Unlocking
Scene Control
Product Specs
Product Specs
Product Specs
Housing Material
• Aluminium Alloy (Main)
Weight
• 2kg
Power Supply
• 6V / AA *4
Protocol
• Bluetooth
IP Rating
• IP55
Operating Temperature
• -10℃ ~ 55 ℃
Operating Humidity
• 10% ~ 90%RH (Non-Condensing)
Low Battery Alarm Threshold
• Less than 4.8V
Capacity
• Fingerprint + Passcode + Access Fob ≤ 100
Door Thickness Suitability
• 35-65mm
Compatible Door Material
• Aluminium Door• Wooden Door
Latchbolt
• 60/70 Adjustable
Alarm Type
• Incorrect Entry Alarm• Low Battery Alarm
Fire Resistance*
• Integrity
False Accept Rate (FAR)
• <0.001%
False Reject Rate (FRR)
• <1%
Fingerprint Recognition Speed
• ≤ 0.5s
Unlock Methods
• Fingerprint• Passcode• Access Fob• Mechanical Key• App Control
Housing Material
• Aluminium Alloy (Main)
Weight
• 2kg
Power Supply
• 6V / AA *4
Protocol
• Bluetooth
IP Rating
• IP55
Operating Temperature
• -10℃ ~ 55 ℃
Operating Humidity
• 10% ~ 90%RH (Non-Condensing)
Low Battery Alarm Threshold
• Less than 4.8V
Capacity
• Fingerprint + Passcode + Access Fob ≤ 100
Door Thickness Suitability
• 35-65mm
Compatible Door Material
• Aluminium Door• Wooden Door
Latchbolt
• 60/70 Adjustable
Alarm Type
• Incorrect Entry Alarm• Low Battery Alarm
Fire Resistance*
• Integrity
False Accept Rate (FAR)
• <0.001%
False Reject Rate (FRR)
• <1%
Fingerprint Recognition Speed
• ≤ 0.5s
Unlock Methods
• Fingerprint• Passcode• Access Fob• Mechanical Key• App Control
