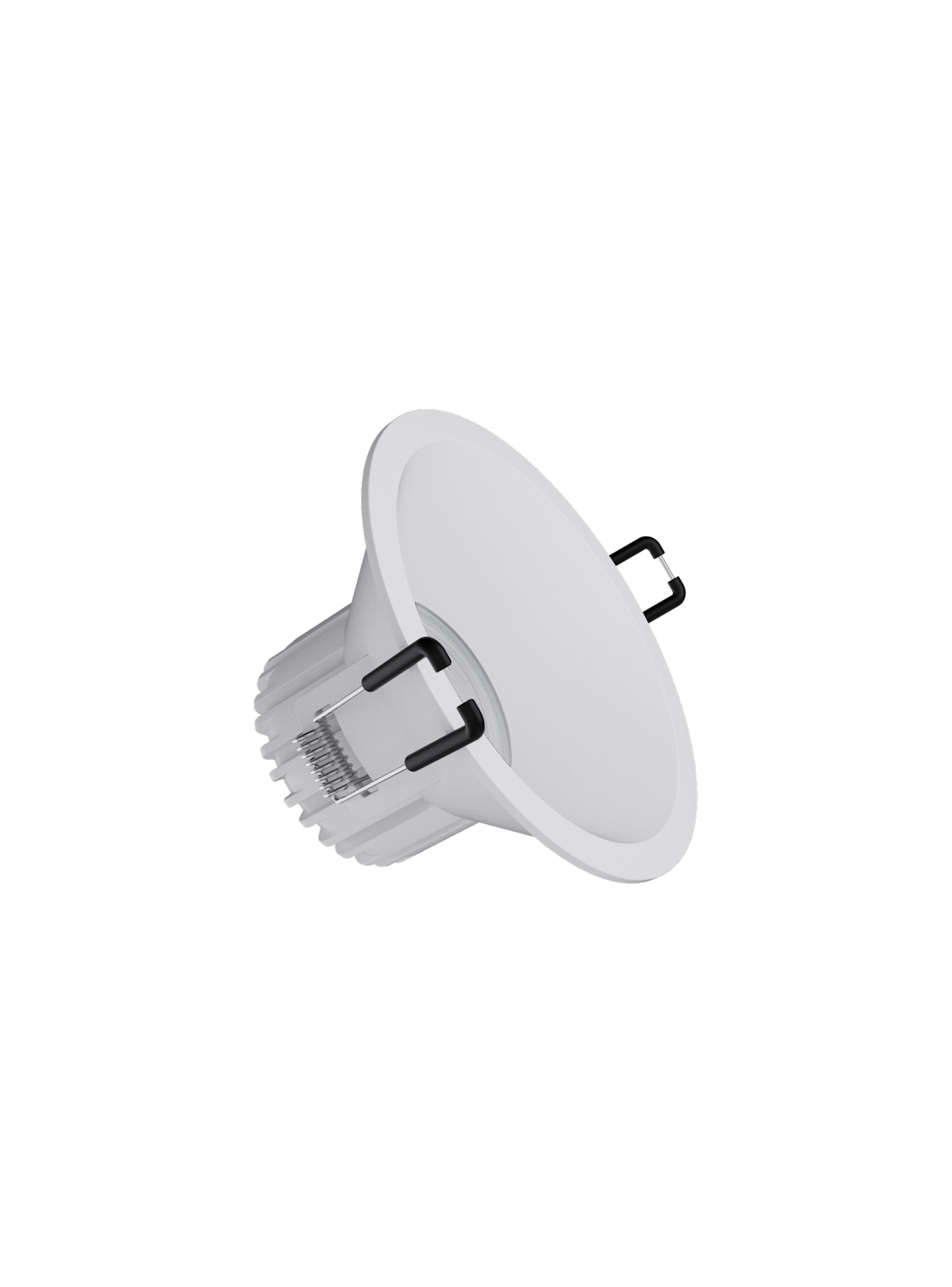

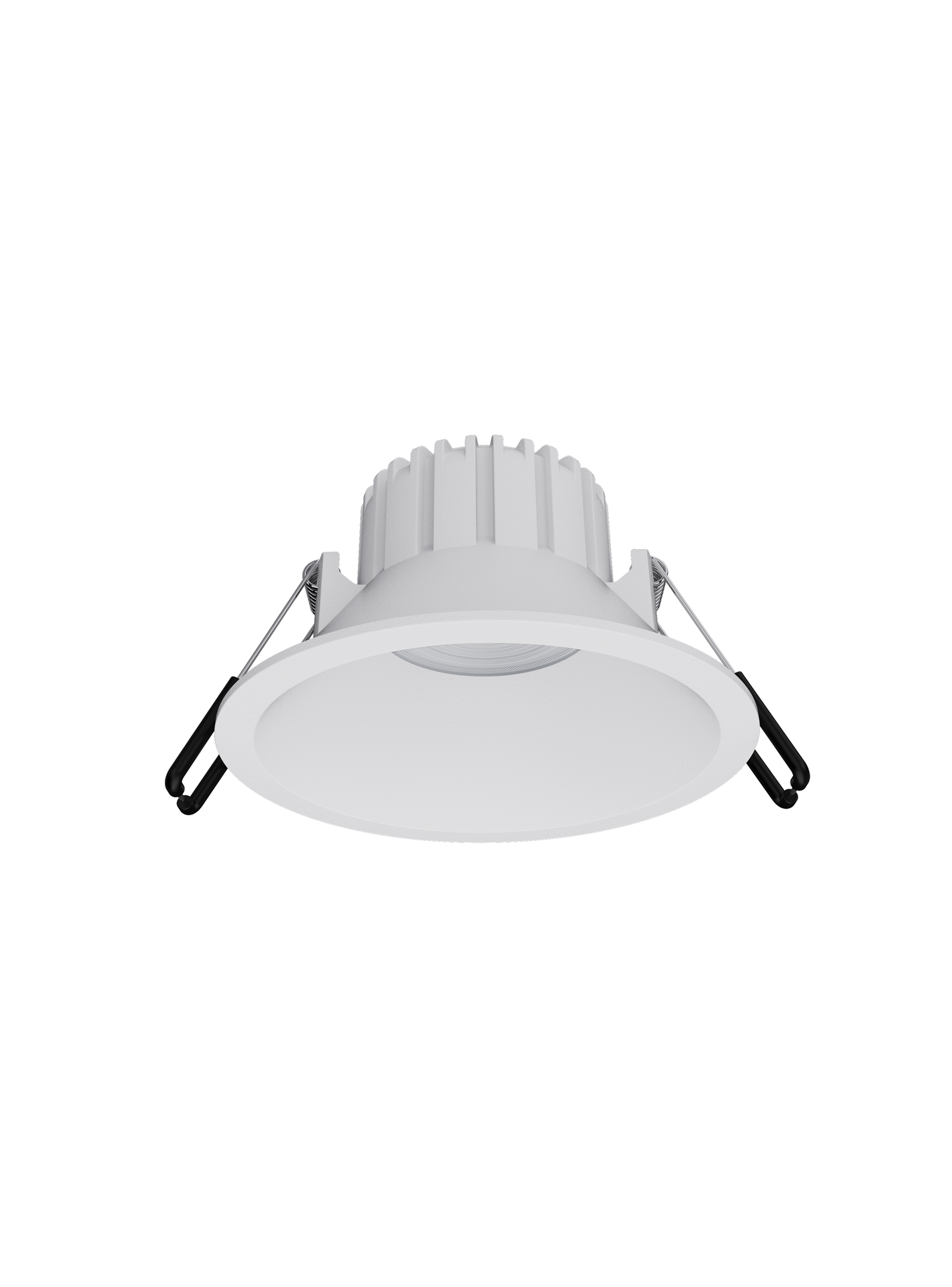

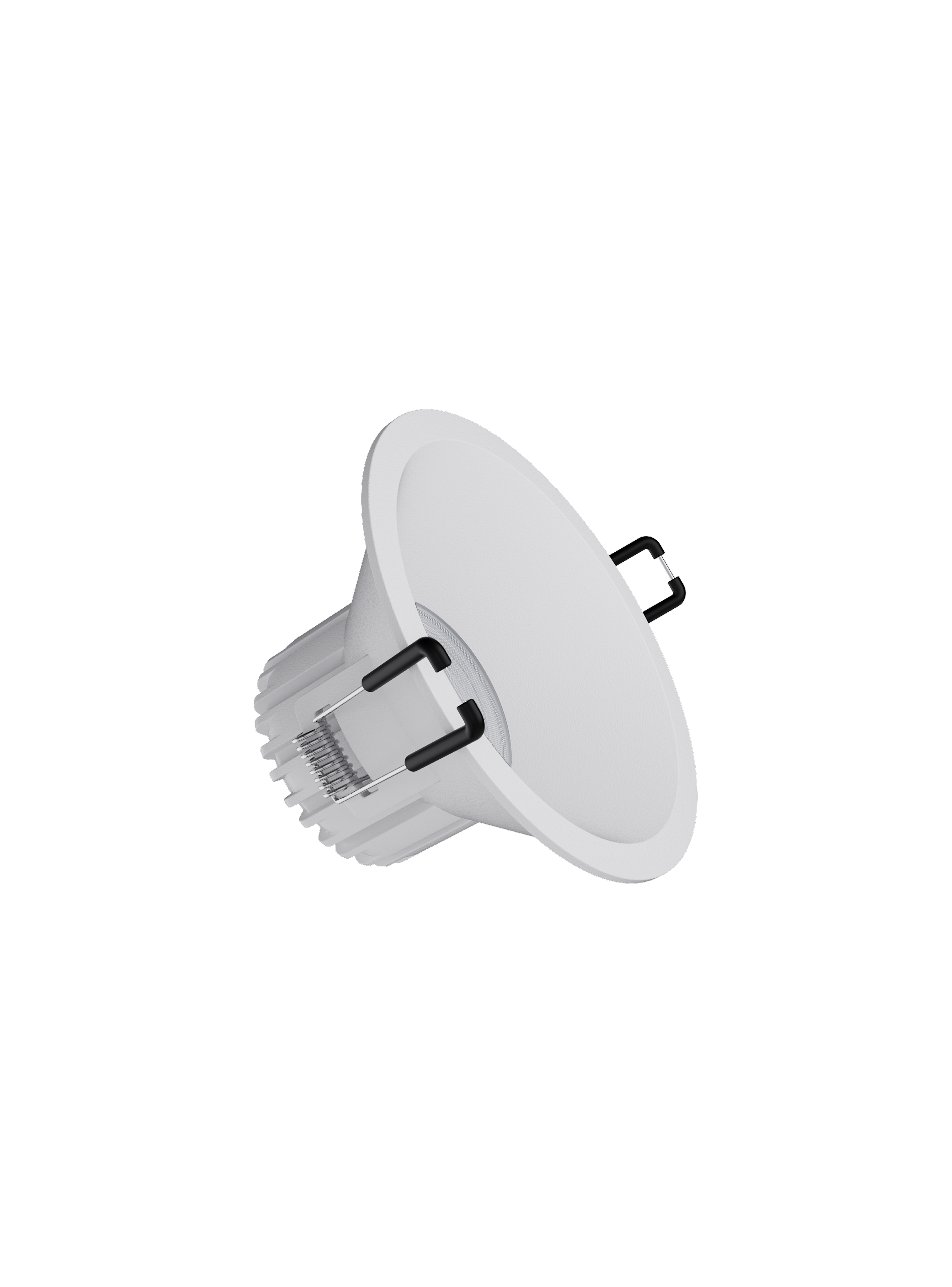

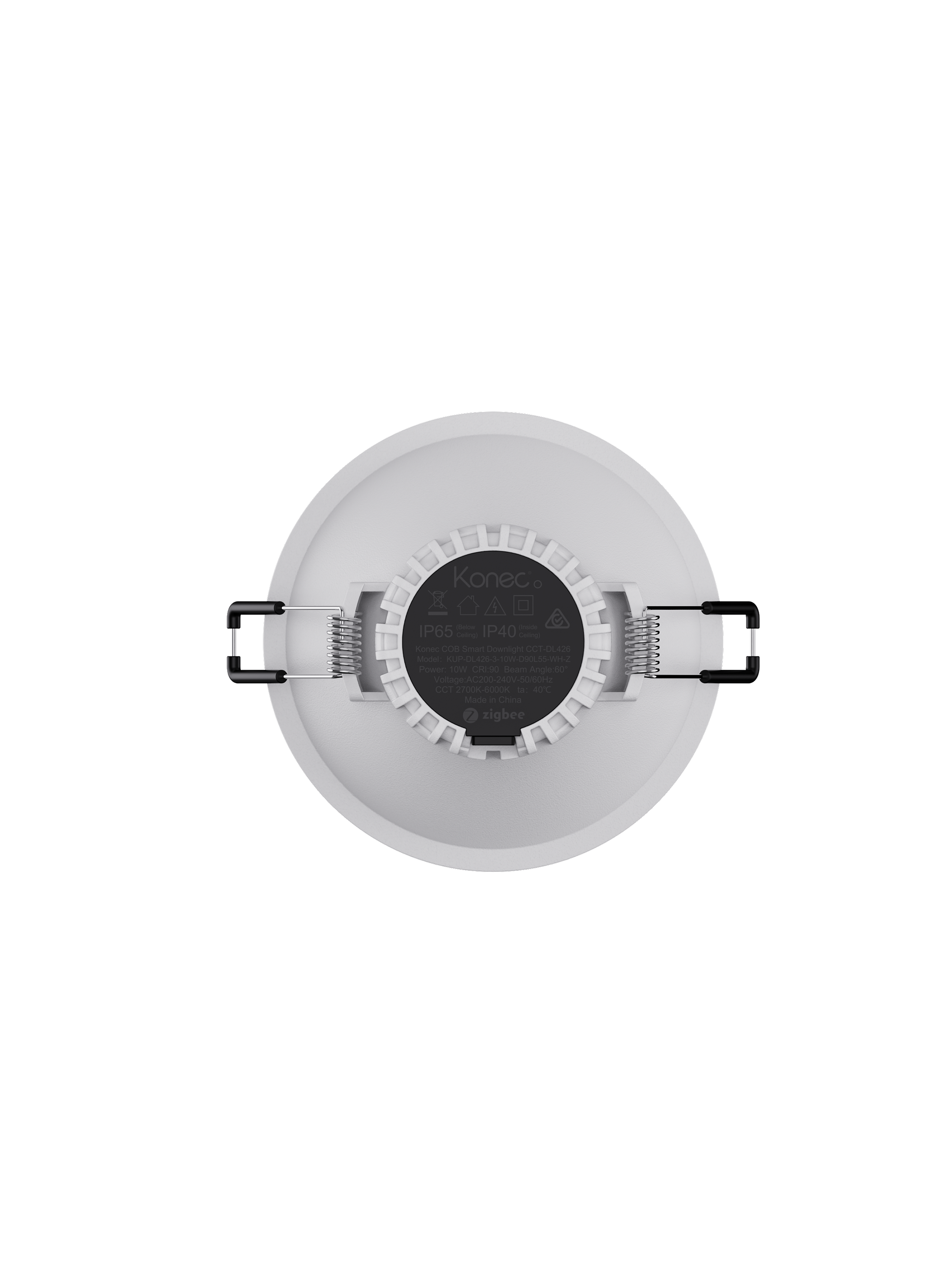

Konec COB Smart Downlight CCT-DL426 White
Konec COB Smart Downlight CCT-DL426 White
The DL426 downlight uses COB LED technology with an anti-glare design and a high CRI for vivid, true-to-life colours. Crafted from die-cast aluminium, it guarantees durability while providing bright, uniform lighting with energy-efficient performance.
The DL426 downlight uses COB LED technology with an anti-glare design and a high CRI for vivid, true-to-life colours. Crafted from die-cast aluminium, it guarantees durability while providing bright, uniform lighting with energy-efficient performance.
Model:
KUP-DL426-3-10W-D90L55-WH-Z
SKU:
KUP00560
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KUP-DL426-3-10W-D90L55-WH-Z
SKU:
KUP00560
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
General Specifications
General Specifications
General Specifications
COB Light Source
Anti-glare Deep Recessed Design
Scene Control
Schedule
App Control
COB Light Source
Anti-glare Deep Recessed Design
Scene Control
Schedule
App Control
COB Light Source
Anti-glare Deep Recessed Design
Scene Control
Schedule
App Control
COB Light Source
Anti-glare Deep Recessed Design
Scene Control
Schedule
App Control
Product Specs
Product Specs
Product Specs
Input Voltage
• AC 220 - 240V ~50/60Hz
Rated Power or Power Rating
• 10W
Electrical Class
• Class II
Luminous Flux
• 790-840lm
LED Driver Type
• Built-out
Connection Type
• Zigbee
IP Rating
• IP65 (Below Ceiling)• IP40 (Inside Ceiling)
Lifespan
• Up to 50,000hr
Glow Wire Test
• 750°C
CCT (K)
• 2700K ~ 6000K
Colour Rendering Index
• > 90
UGR
• <19
Beam Angle
• 60°
Cutout
• Ø90mm
Housing Material
• Die Cast Aluminium
Optics Material
• PC
Operating Temperature
• -20°C ~ 45°C
Installation Method
• Recessed
Input Voltage
• AC 220 - 240V ~50/60Hz
Rated Power or Power Rating
• 10W
Electrical Class
• Class II
Luminous Flux
• 790-840lm
LED Driver Type
• Built-out
Connection Type
• Zigbee
IP Rating
• IP65 (Below Ceiling)• IP40 (Inside Ceiling)
Lifespan
• Up to 50,000hr
Glow Wire Test
• 750°C
CCT (K)
• 2700K ~ 6000K
Colour Rendering Index
• > 90
UGR
• <19
Beam Angle
• 60°
Cutout
• Ø90mm
Housing Material
• Die Cast Aluminium
Optics Material
• PC
Operating Temperature
• -20°C ~ 45°C
Installation Method
• Recessed
