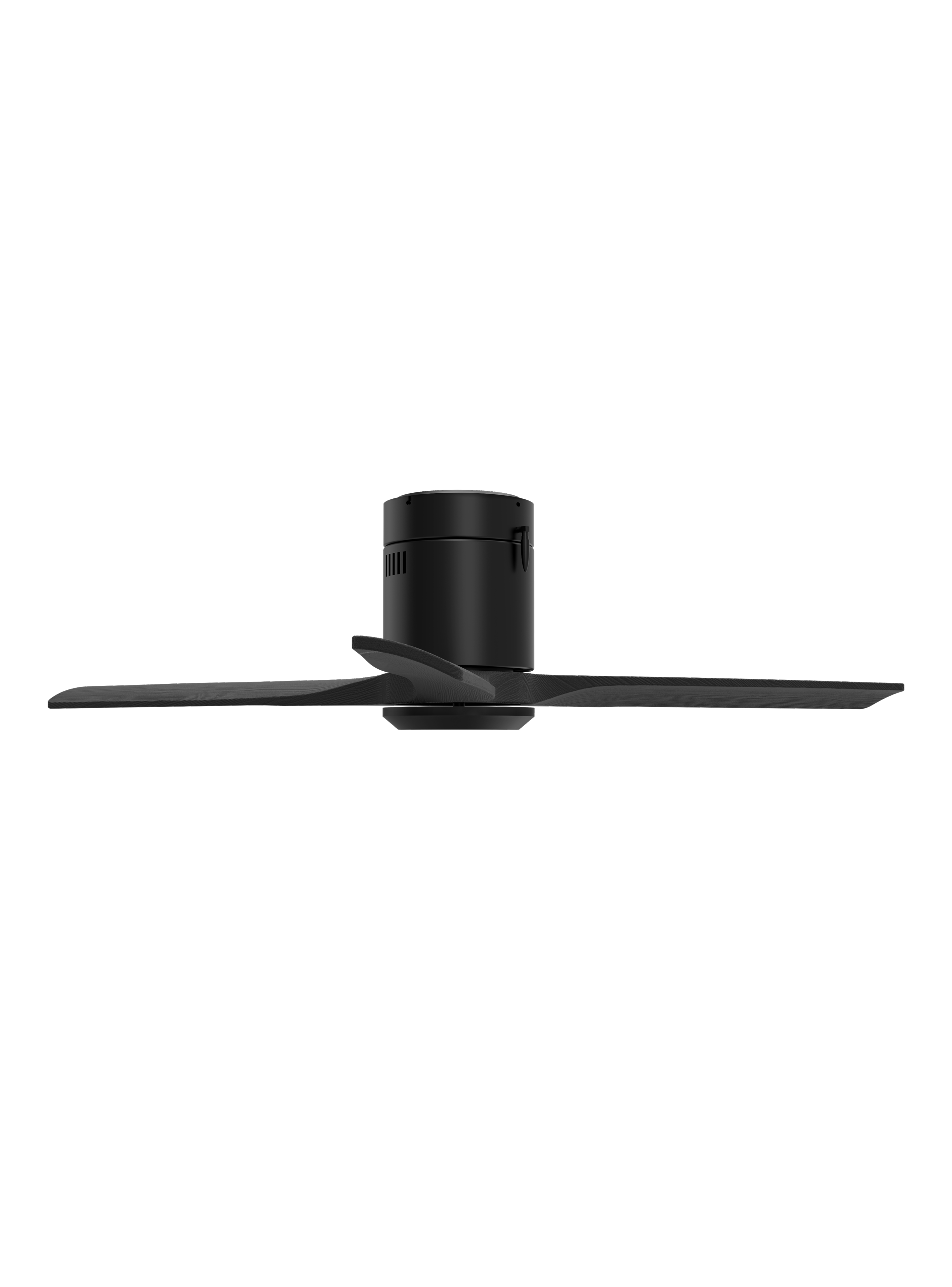

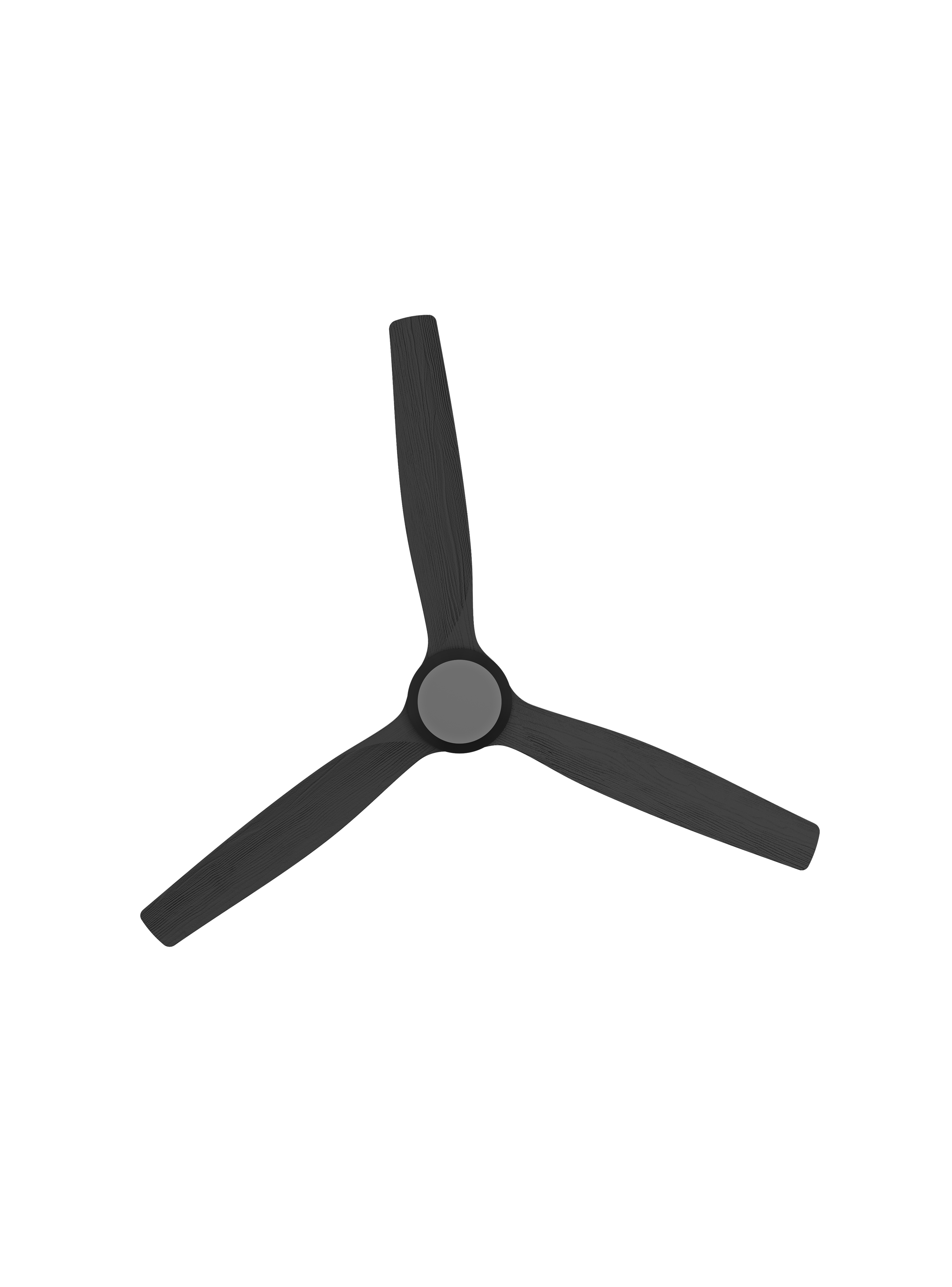

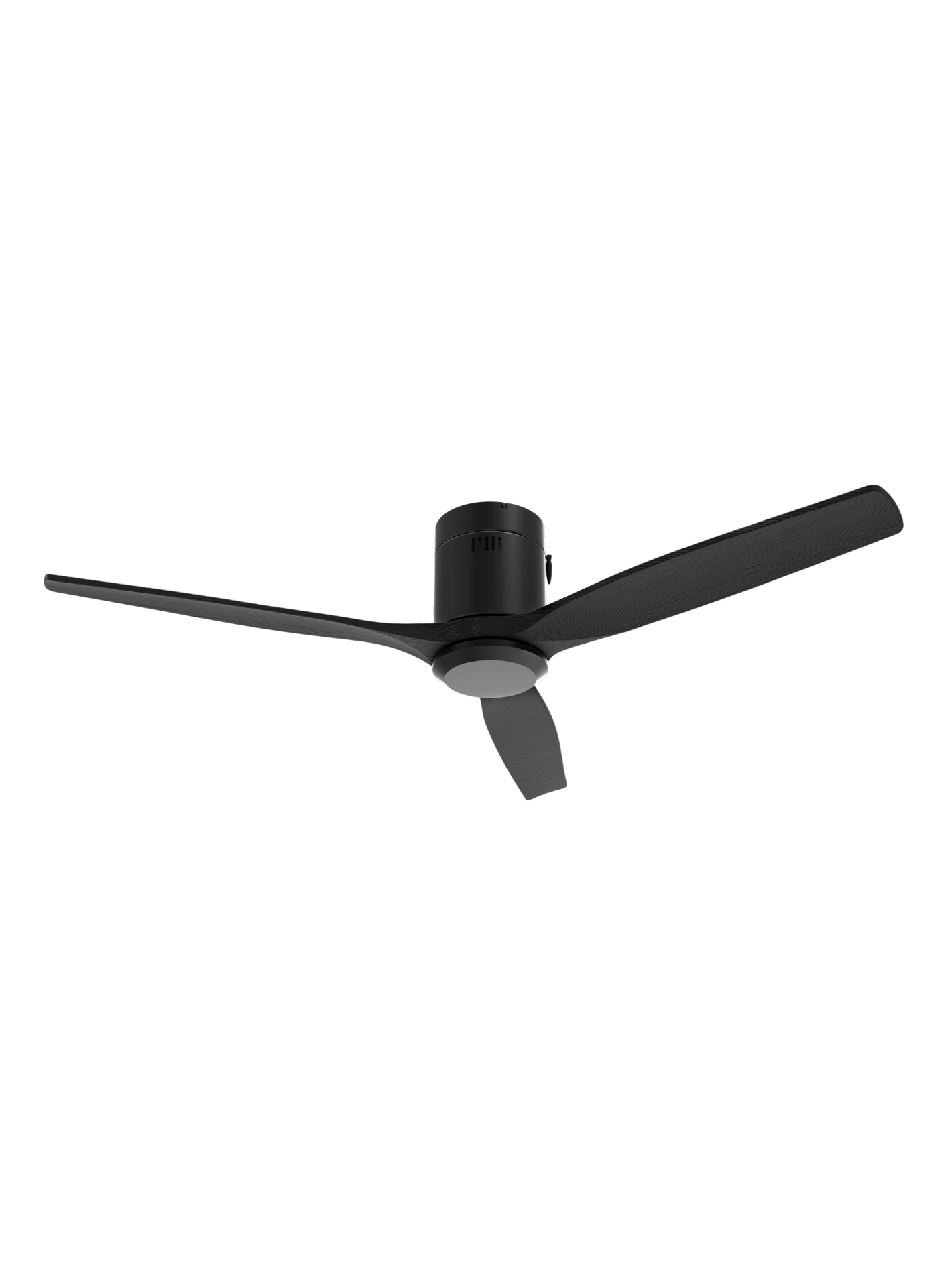

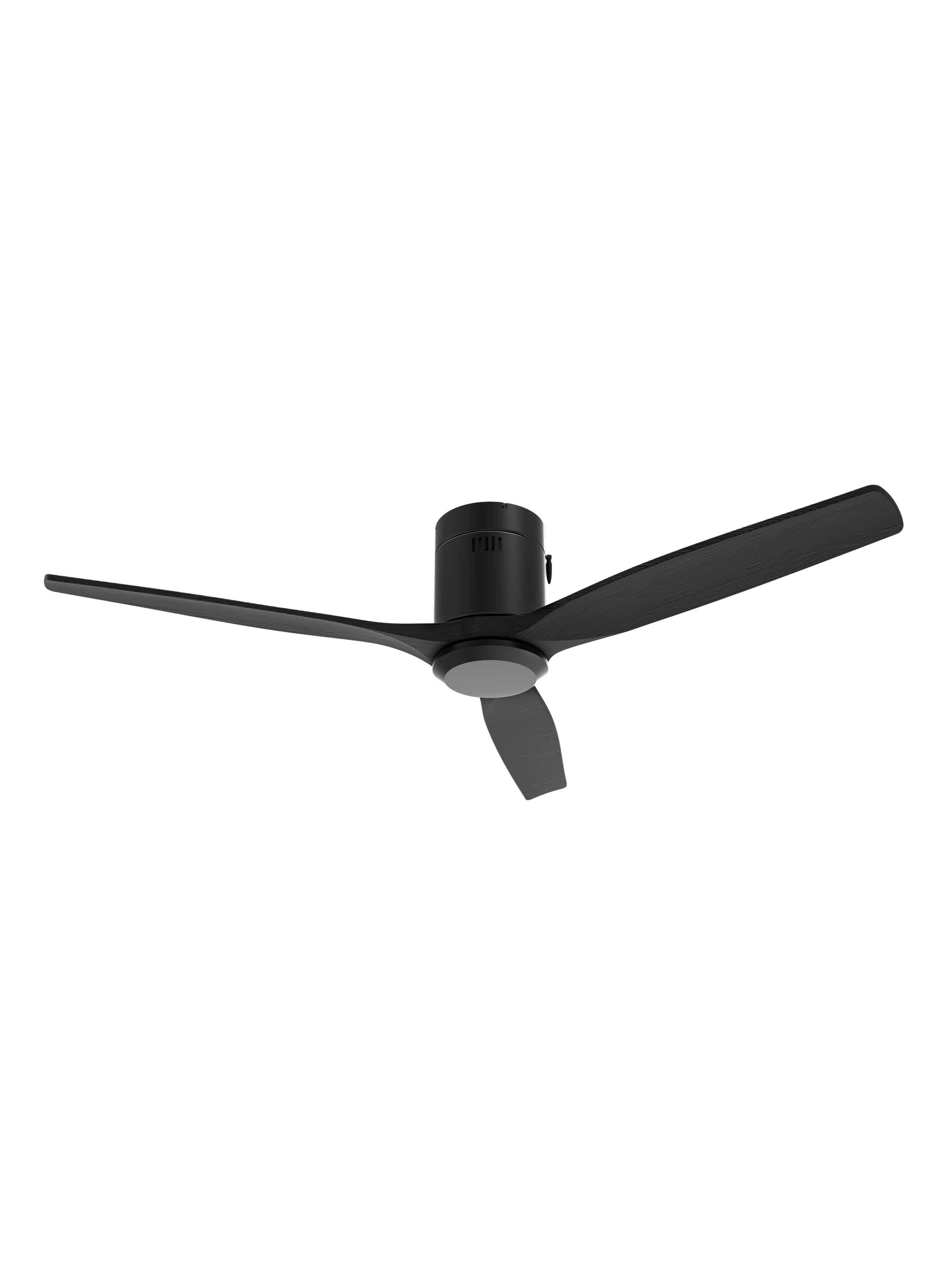

Konec Smart DC Fan FA1 Black
Konec Smart DC Fan FA1 Black
The Konec Smart DC Fan FA1 is a 52-inch ceiling fan with three solid wood blades, suitable for indoor spaces up to 35 m² such as living rooms, bedrooms, and offices. It features a DC motor with 6 speeds and reversible airflow for efficient, year-round comfort. The fan can be controlled via the included remote or smartphone app, allowing users to adjust speed, set weekly schedules, and manage settings easily.
The Konec Smart DC Fan FA1 is a 52-inch ceiling fan with three solid wood blades, suitable for indoor spaces up to 35 m² such as living rooms, bedrooms, and offices. It features a DC motor with 6 speeds and reversible airflow for efficient, year-round comfort. The fan can be controlled via the included remote or smartphone app, allowing users to adjust speed, set weekly schedules, and manage settings easily.
Model:
KSY-FAN-1-52-WO-BL-Z
SKU:
KFA00007
Certifications:
RCM, SAA
Colours:
Black
Connection Protocol:
Zigbee
Model:
KSY-FAN-1-52-WO-BL-Z
SKU:
KFA00007
Certifications:
RCM, SAA
Colours:
Black
Connection Protocol:
Zigbee
More
General Specifications
General Specifications
General Specifications
Fan Speed
DC Motor
Reversible Rotation
Schedule
App Control
Controller Included
Fan Speed
DC Motor
Reversible Rotation
Schedule
App Control
Controller Included
Fan Speed
DC Motor
Reversible Rotation
Schedule
App Control
Controller Included
Fan Speed
DC Motor
Reversible Rotation
Schedule
App Control
Controller Included
Product Specs
Product Specs
Product Specs
Input Voltage
• AC 200-240V~ 50Hz/60Hz
Rated Power or Power Rating
• 35 ± 5W
Motor
• DC 24V
Connection Type
• Zigbee
Countdown
• 1/ 2/ 4/ 8H
Speed Levels
• 1 - 6 Levels
Revolutions per minute
• 70/ 92/ 115/ 138/ 165/ 190
Air Flow
• 13960m³/hours @ Speed Level 6
Noise Level
• <45dB
Dimming Option
• Arks App• Remote Controller
Materials
• Solid Wood (Paulownia)
Operating Temperature
• -20 ℃ ~ 45 ℃
Reverse Function
• Supported
Installation Method
• Surface Mounting
Mounting Height
• >2100mm Above the floor
Weight
• 4.5kg
Input Voltage
• AC 200-240V~ 50Hz/60Hz
Rated Power or Power Rating
• 35 ± 5W
Motor
• DC 24V
Connection Type
• Zigbee
Countdown
• 1/ 2/ 4/ 8H
Speed Levels
• 1 - 6 Levels
Revolutions per minute
• 70/ 92/ 115/ 138/ 165/ 190
Air Flow
• 13960m³/hours @ Speed Level 6
Noise Level
• <45dB
Dimming Option
• Arks App• Remote Controller
Materials
• Solid Wood (Paulownia)
Operating Temperature
• -20 ℃ ~ 45 ℃
Reverse Function
• Supported
Installation Method
• Surface Mounting
Mounting Height
• >2100mm Above the floor
Weight
• 4.5kg
Resources
Resources
Resources
DATA SHEET - KFA00007 - 01062026
INSTALLATION GUIDE - Konec Sma...
DATA SHEET - KFA00007 - 01062026
INSTALLATION GUIDE - Konec Sma...
DATA SHEET - KFA0...
INSTALLATION GUID...
DATA SHEET - KFA00007 - 01062026
INSTALLATION GUIDE - Konec Smar...
