Control-Centre

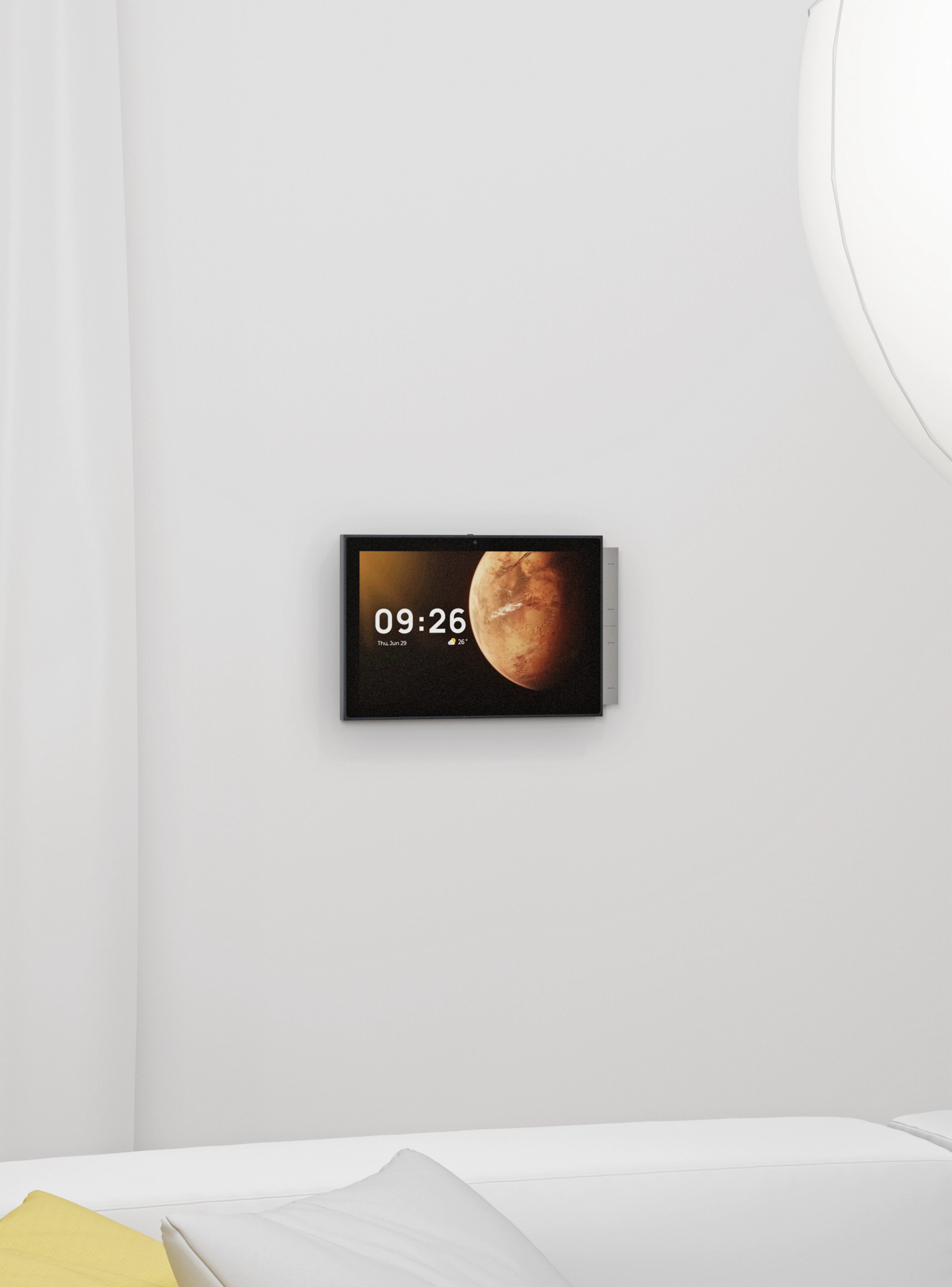

Konec Smart Control Panel 10'' Max
Konec Smart Control Panel 10'' Max
The central hub interface effortlessly integrates all Konec smart home devices. Maximise your smart home experience by having control over your Smart home products.
The central hub interface effortlessly integrates all Konec smart home devices. Maximise your smart home experience by having control over your Smart home products.
Model:
KTY-TPA10-M2UC-118KC
SKU:
KCP00031
Certifications:
RCM, SAA
Colours:
Black and Silver
Connection Protocol:
Ethernet, Wi-Fi, Zigbee, Bluetooth
Model:
KTY-TPA10-M2UC-118KC
SKU:
KCP00031
Certifications:
RCM, SAA
Colours:
Black and Silver
Connection Protocol:
Ethernet, Wi-Fi, Zigbee, Bluetooth
More
General Specifications
General Specifications
General Specifications
Auto Brightness
Customisable Buttons
Multi-control Method
real-time surveillance
Video Intercom
Auto Brightness
Customisable Buttons
Multi-control Method
real-time surveillance
Video Intercom
Auto Brightness
Customisable Buttons
Multi-control Method
real-time surveillance
Video Intercom
Auto Brightness
Customisable Buttons
Multi-control Method
real-time surveillance
Video Intercom
Product Specs
Product Specs
Product Specs
Input Voltage
• AC 100-240V, 50Hz/60Hz
Protocol
• Wi-Fi (2.4G)• Zigbee• Bluetooth
Operating Temperature
• 0℃ ~ 40℃
Operating Humidity
• 5% ~ 90%（Non-condensing)
Operation System
• Android
Installation Method
• Wall Mounted
Ethernet Port Speed
• 100 Mbps
Network Port
• RJ45
Buttons
• Custom Button x 4• Mute Button x 1
Pluggable Screw Terminal Block Connector (3-Pin)
• RS485 x 1
Terminal Port
• Power Port x 1• Load Port x 2
CPU
• Quad-Core Processor, Max. 1.8 GHz
RAM
• 2G
ROM
• 8G
Screen Size
• 10.1-inch
Screen Ratio
• 16
Resolution
• WUXGA 1920 x 1200
Touch Screen Type
• Capacitive Touch Screen
Lens Type
• 5 Megapixel Camera
Input Voltage
• AC 100-240V, 50Hz/60Hz
Protocol
• Wi-Fi (2.4G)• Zigbee• Bluetooth
Operating Temperature
• 0℃ ~ 40℃
Operating Humidity
• 5% ~ 90%（Non-condensing)
Operation System
• Android
Installation Method
• Wall Mounted
Ethernet Port Speed
• 100 Mbps
Network Port
• RJ45
Buttons
• Custom Button x 4• Mute Button x 1
Pluggable Screw Terminal Block Connector (3-Pin)
• RS485 x 1
Terminal Port
• Power Port x 1• Load Port x 2
CPU
• Quad-Core Processor, Max. 1.8 GHz
RAM
• 2G
ROM
• 8G
Screen Size
• 10.1-inch
Screen Ratio
• 16
Resolution
• WUXGA 1920 x 1200
Touch Screen Type
• Capacitive Touch Screen
Lens Type
• 5 Megapixel Camera
Resources
Resources
Resources
DATA SHEET - KCP00031 - 01072026
INSTALLATION GUIDE - KCP00031 -...
USER MANUAL - KCP00031 - 01072026
DATA SHEET - KCP00031 - 01072026
INSTALLATION GUIDE - KCP00031 -...
USER MANUAL - KCP00031 - 01072026
DATA SHEET - KCP0...
INSTALLATION GUID...
USER MANUAL - KCP...
DATA SHEET - KCP00031 - 01072026
INSTALLATION GUIDE - KCP00031 - ...
USER MANUAL - KCP00031 - 01072026
