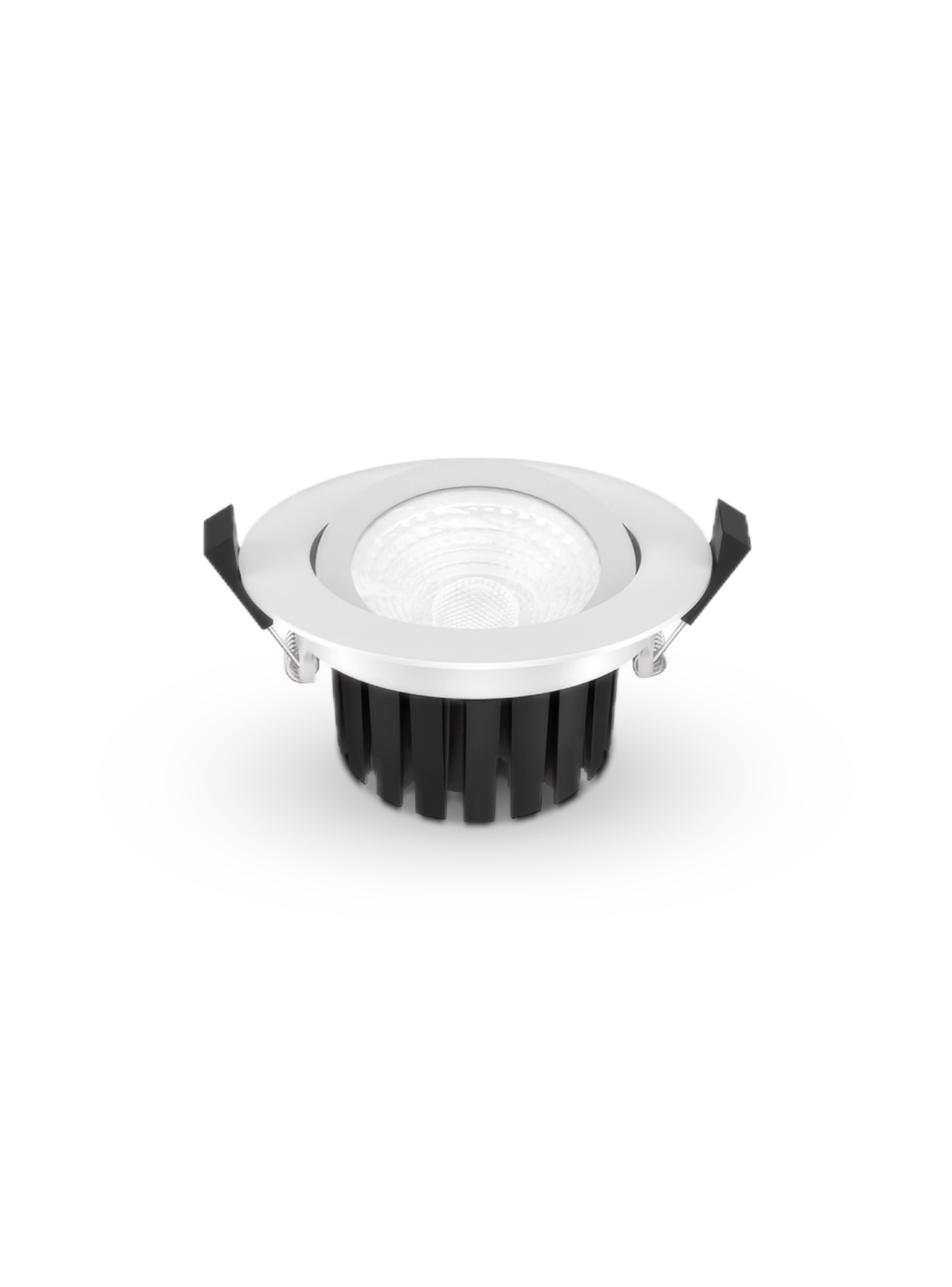

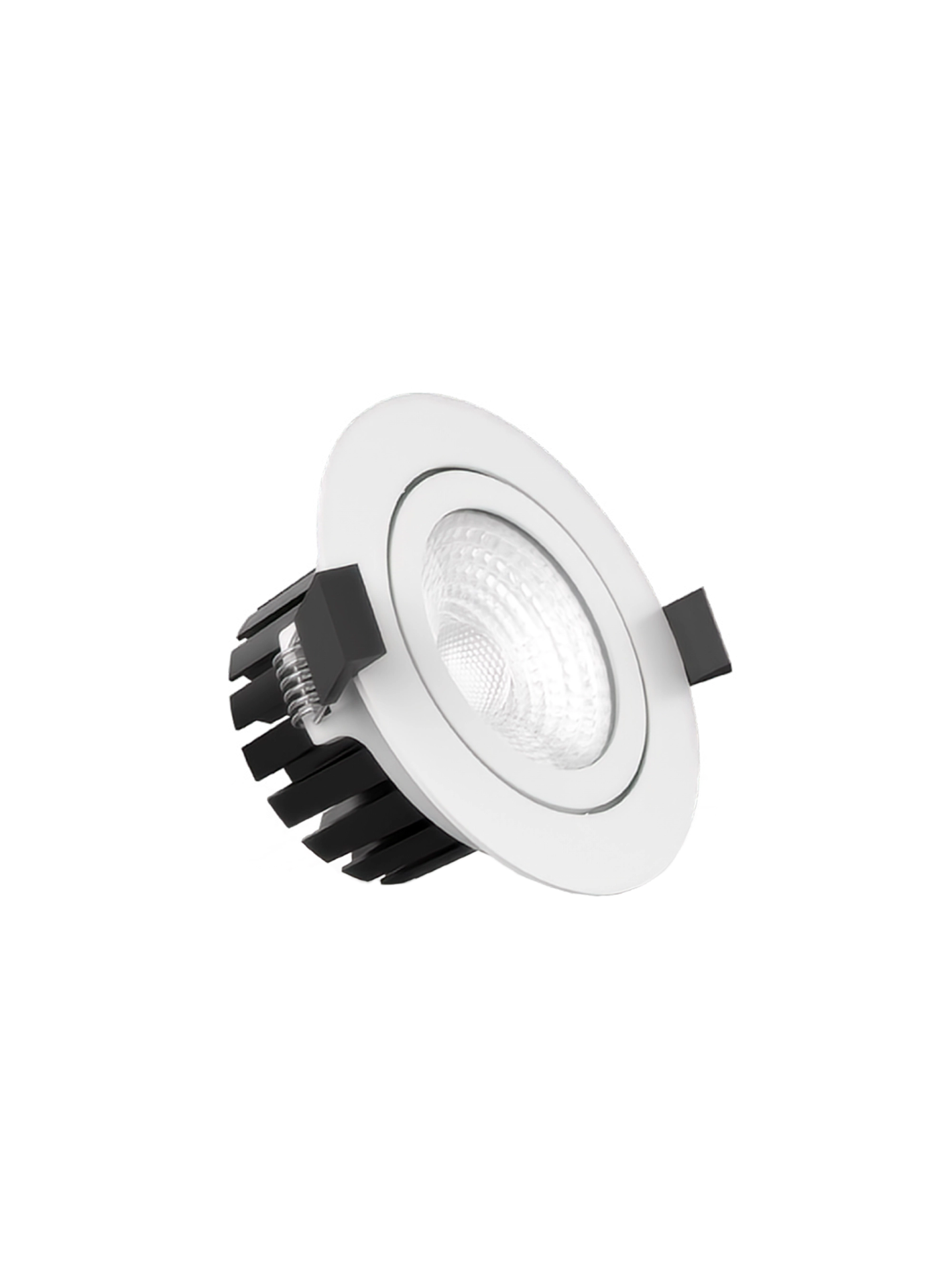

Konec COB Smart Downlight CCT-CL102
Konec COB Smart Downlight CCT-CL102
Konec COB Smart Downlight CCT-CL102
Our COB downlight provides optimal light solution through adjustable 30° angle, colour temperatures, and brightness.
Our COB downlight provides optimal light solution through adjustable 30° angle, colour temperatures, and brightness.
Our COB downlight provides optimal light solution through adjustable 30° angle, colour temperatures, and brightness.
Model:
KUP-COB-CL102-3-10W-D95L50-Z
SKU:
KUP00555
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KUP-COB-CL102-3-10W-D95L50-Z
SKU:
KUP00555
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
Model:
KUP-COB-CL102-3-10W-D95L50-Z
SKU:
KUP00555
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
General Specifications
General Specifications
General Specifications
Adjustable Angle
App Control
COB Light Source
Scene Control
Schedule
Adjustable Angle
App Control
COB Light Source
Scene Control
Schedule
Adjustable Angle
App Control
COB Light Source
Scene Control
Schedule
Adjustable Angle
App Control
COB Light Source
Scene Control
Schedule
Product Specs
Product Specs
Product Specs
Rated Power or Power Rating
• 10W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 840-980lm
CCT (K)
• 2700K~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 60°
LED Driver Type
• Built-out
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
Materials of Optics
• PC
Housing Material
• Aluminium
Lifetime (hr)
• 50000h
Glow Wire Test
• 750°c
Operating Temperature
• -20°C~45°C
Cutout
• Ø90-95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 10W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 840-980lm
CCT (K)
• 2700K~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 60°
LED Driver Type
• Built-out
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
Materials of Optics
• PC
Housing Material
• Aluminium
Lifetime (hr)
• 50000h
Glow Wire Test
• 750°c
Operating Temperature
• -20°C~45°C
Cutout
• Ø90-95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 10W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 840-980lm
CCT (K)
• 2700K~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 60°
LED Driver Type
• Built-out
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
Materials of Optics
• PC
Housing Material
• Aluminium
Lifetime (hr)
• 50000h
Glow Wire Test
• 750°c
Operating Temperature
• -20°C~45°C
Cutout
• Ø90-95mm
Installation Method
• Recessed
Resources
Resources
Resources
DATA SHEET - KUP00555 - 01052025
DATA SHEET - KUP00555 - 01052025
DATA SHEET - KUP0...
DATA SHEET - KUP00555 - 01052025
