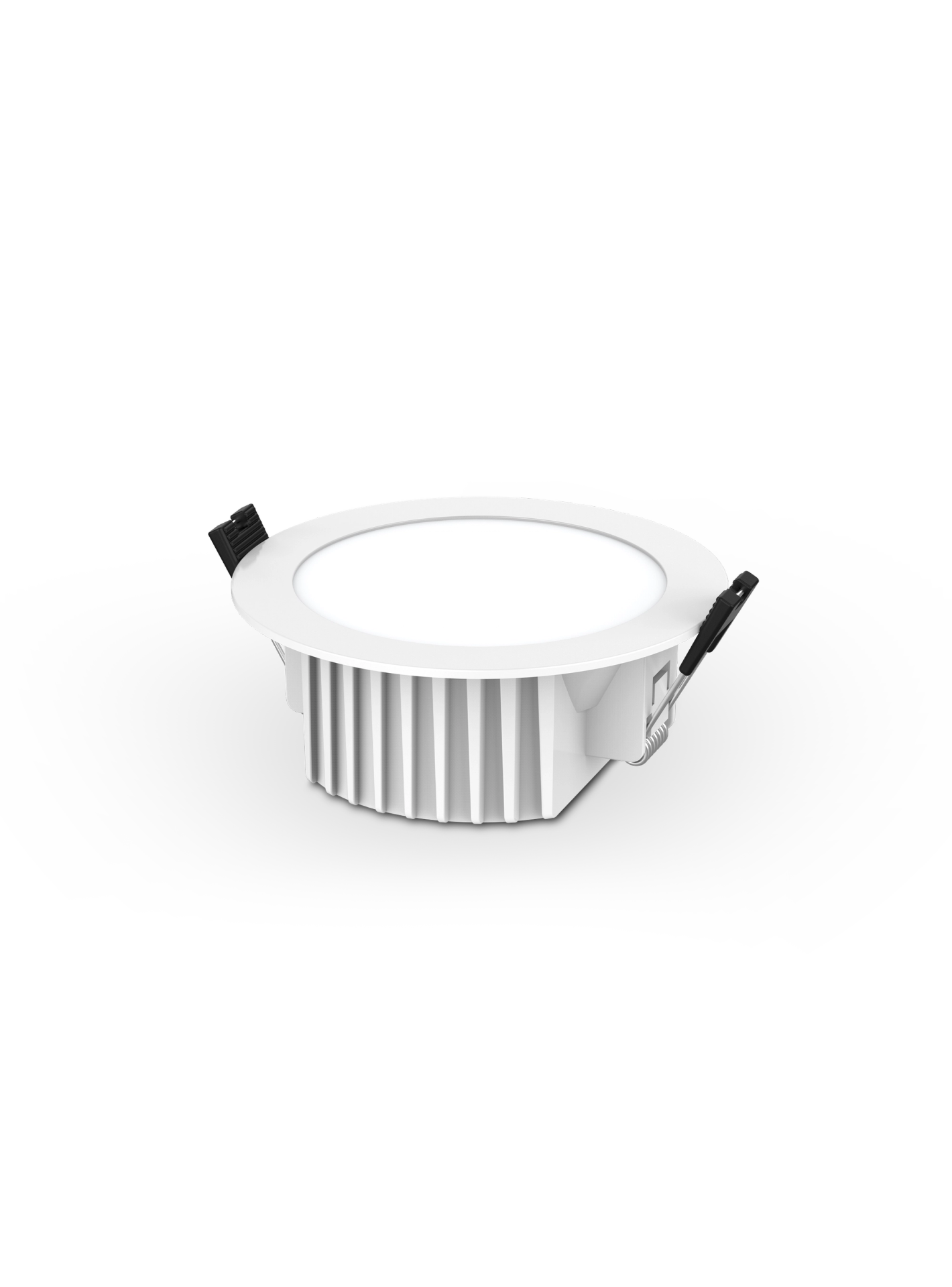

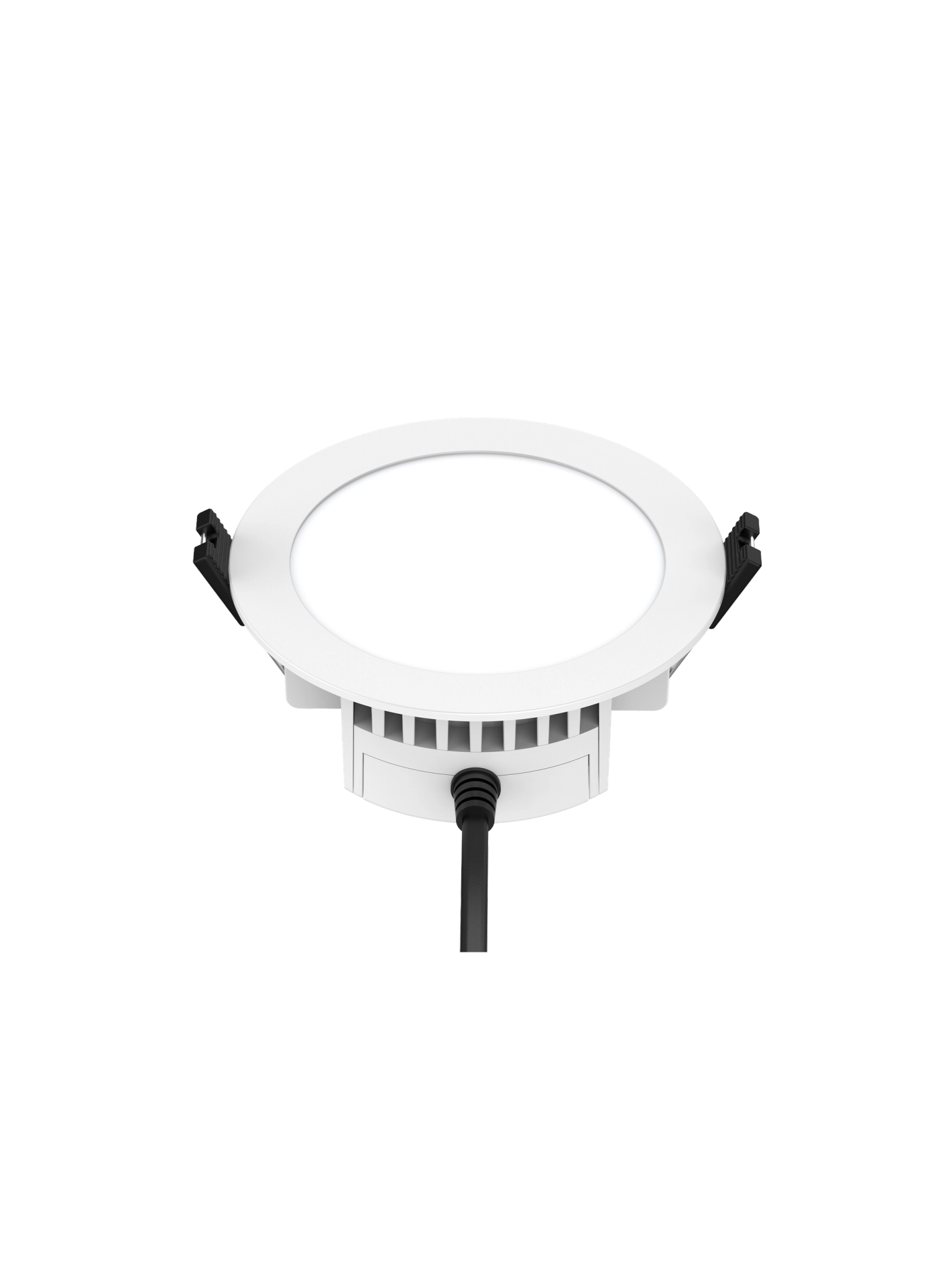

Konec Smart Downlight CCT-Z260
Konec Smart Downlight CCT-Z260
Konec Smart Downlight CCT-Z260
Tailor the ambience to your liking, adjusting lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Tailor the ambience to your liking, adjusting lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Tailor the ambience to your liking, adjusting lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Model:
KUP-DL260B-8W-D90L40-Z
SKU:
KUP00550
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KUP-DL260B-8W-D90L40-Z
SKU:
KUP00550
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
Model:
KUP-DL260B-8W-D90L40-Z
SKU:
KUP00550
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
General Specifications
General Specifications
General Specifications
Adjustable Brightness
Energy saving
OTA Update
Scene Control
Schedule
Adjustable Brightness
Energy saving
OTA Update
Scene Control
Schedule
Adjustable Brightness
Energy saving
OTA Update
Scene Control
Schedule
Adjustable Brightness
Energy saving
OTA Update
Scene Control
Schedule
Product Specs
Product Specs
Product Specs
Rated Power or Power Rating
• 8W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 640~670lm
CCT (K)
• 2700K ~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 110°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Electrical Class
• Class II
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃ ~45℃
Cutout
• 90~95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 8W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 640~670lm
CCT (K)
• 2700K ~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 110°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Electrical Class
• Class II
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃ ~45℃
Cutout
• 90~95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 8W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 640~670lm
CCT (K)
• 2700K ~6500K
Colour Rendering Index
• ≥80
Beam Angle
• 110°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Electrical Class
• Class II
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃ ~45℃
Cutout
• 90~95mm
Installation Method
• Recessed
Resources
Resources
Resources

DATA SHEET - KUP00550 - 01052025

DATA SHEET - KUP00550 - 01052025

DATA SHEET - KUP0...

DATA SHEET - KUP00550 - 01052025
