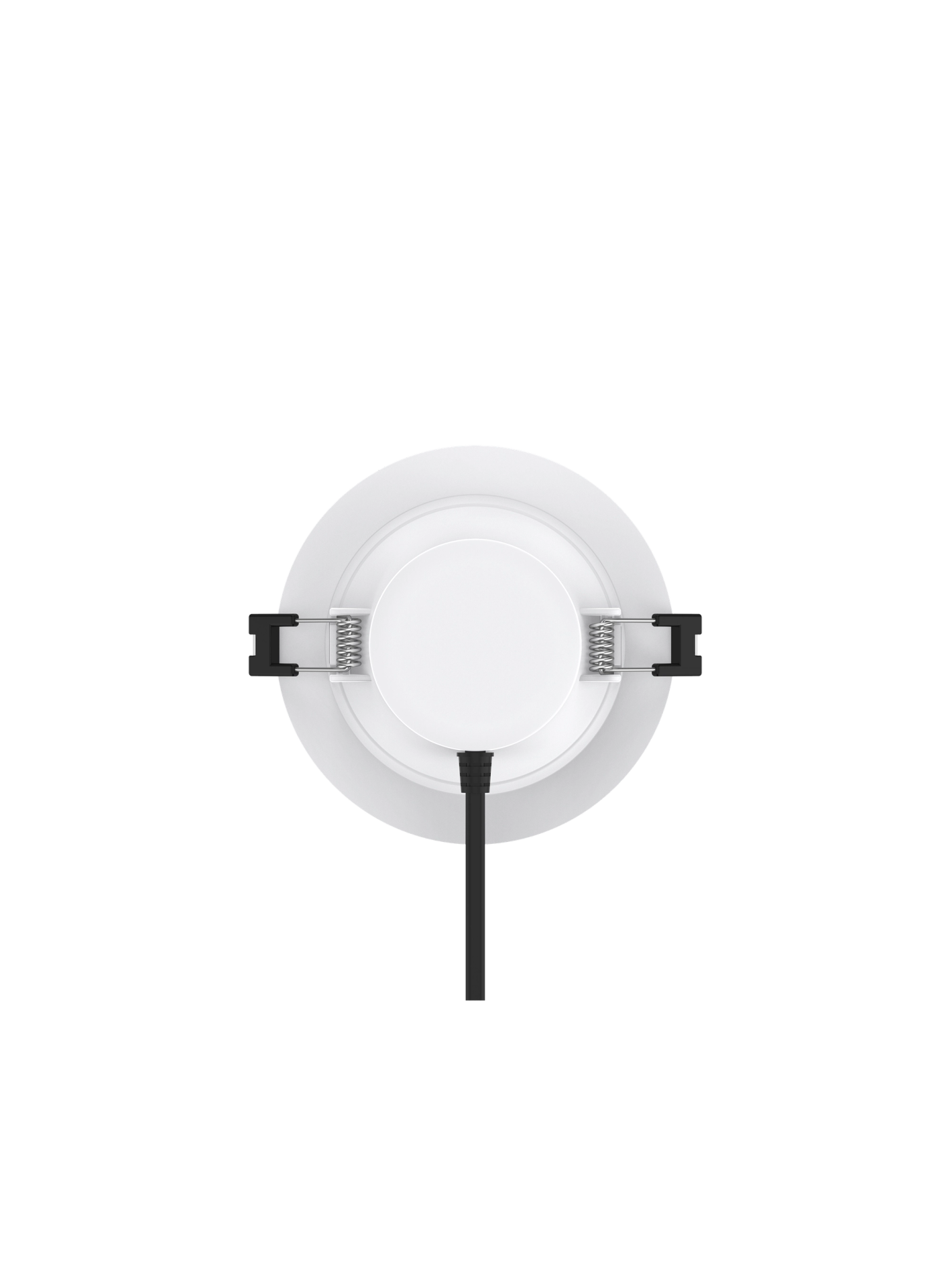

Konec Smart Downlight RGB-Z377
Konec Smart Downlight RGB-Z377
Konec Smart Downlight RGB-Z377
Tailor the ambience to your liking, adjusting colour, lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Tailor the ambience to your liking, adjusting colour, lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Tailor the ambience to your liking, adjusting colour, lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Model:
KUP-DL377B-9W-D90L57-Z
SKU:
KUP00552
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KUP-DL377B-9W-D90L57-Z
SKU:
KUP00552
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
Model:
KUP-DL377B-9W-D90L57-Z
SKU:
KUP00552
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
General Specifications
General Specifications
General Specifications
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Product Specs
Product Specs
Product Specs
Rated Power or Power Rating
• 9W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 900~1000lm
CCT (K)
• 2700~6500K+RGB
Colour Rendering Index
• ≥80
Beam Angle
• 90°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃~45℃
Cutout
• Ø90-95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 9W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 900~1000lm
CCT (K)
• 2700~6500K+RGB
Colour Rendering Index
• ≥80
Beam Angle
• 90°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃~45℃
Cutout
• Ø90-95mm
Installation Method
• Recessed
Rated Power or Power Rating
• 9W
Input Voltage
• AC220-240V~ 50Hz/60Hz
Luminous Flux
• 900~1000lm
CCT (K)
• 2700~6500K+RGB
Colour Rendering Index
• ≥80
Beam Angle
• 90°
LED Driver Type
• Built-in
Dimming Option
• Arks App• Control Panel
Electrical Class
• Class II
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Materials of Optics
• PC
Housing Material
• PA46
Lifetime (hr)
• 50,000h
Glow Wire Test
• 750℃
Operating Temperature
• -20℃~45℃
Cutout
• Ø90-95mm
Installation Method
• Recessed
Resources
Resources
Resources

DATA SHEET - KUP00552 - 01052025

DATA SHEET - KUP00552 - 01052025

DATA SHEET - KUP0...

DATA SHEET - KUP00552 - 01052025
