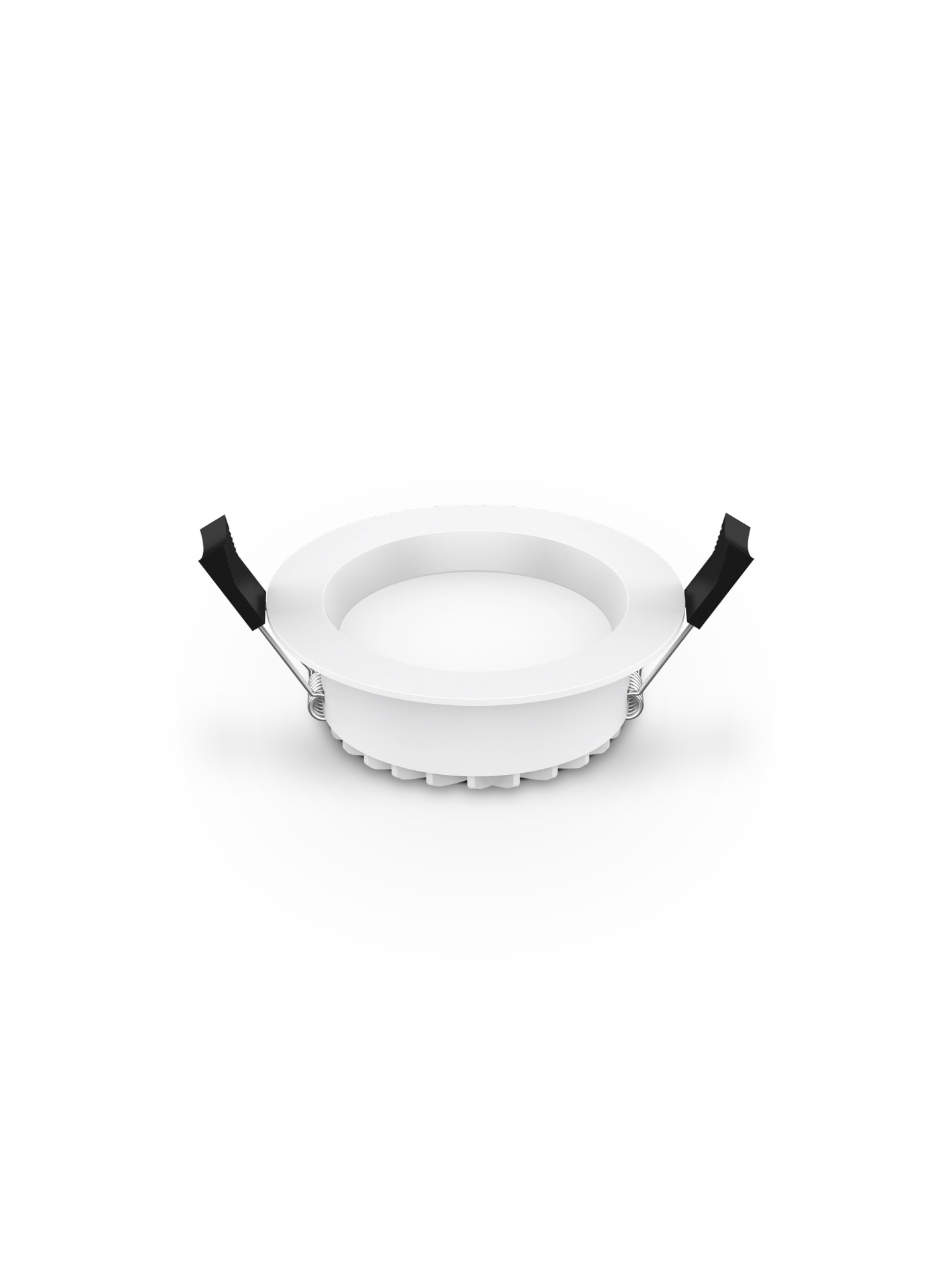

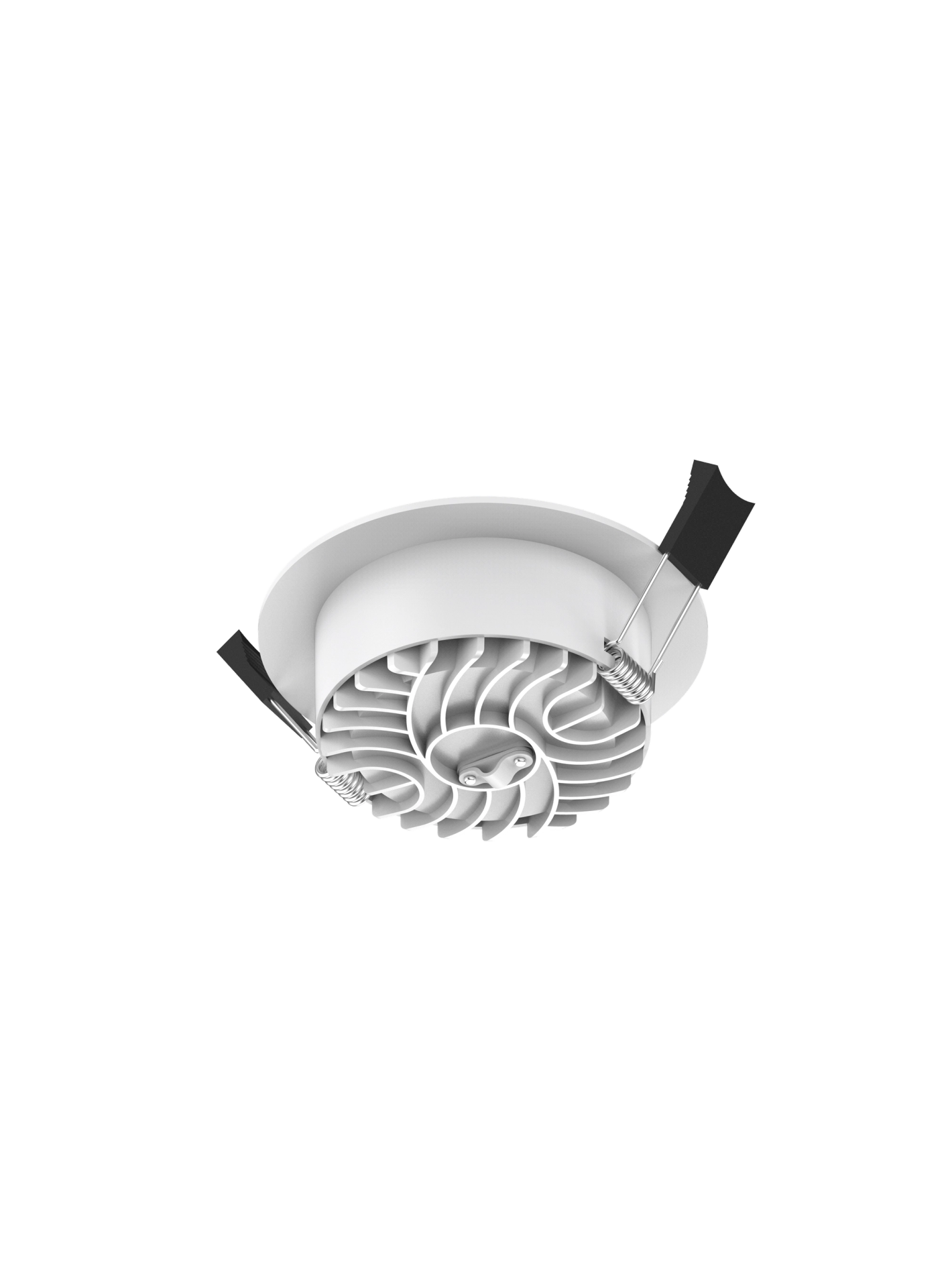

Konec Smart Downlight RGB-Z97
Konec Smart Downlight RGB-Z97
Tailor the ambience to your liking, adjusting colour, lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Tailor the ambience to your liking, adjusting colour, lighting temperature and brightness in harmony. The extensive Konec Smart downlight range ensures suitability to set the mood for various situations.
Model:
KUP-DL97A-10W-D90L45-Z
SKU:
KUP00553
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
Model:
KUP-DL97A-10W-D90L45-Z
SKU:
KUP00553
Certifications:
RCM, SAA
Colours:
White
Connection Protocol:
Zigbee
More
General Specifications
General Specifications
General Specifications
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Energy saving
OTA Update
RGB
Scene Control
Schedule
Product Specs
Product Specs
Product Specs
Housing Material
• Aluminium
Optics Material
• PC
Input Voltage
• AC 220-240V, 50/60Hz
Rated Power
• 10W
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Operating Temperature
• -20℃ ~45℃
Installation Method
• Recessed Mounted
Cutout
• Ø90-95mm
Electrical Class
• Class II
IC-Rating
• IC-4
Luminous Flux
• 850-900lm
LED Driver
• Built-out
Lifespan
• Up to 50,000hr
Glow Wire Test
• 750℃
RGB
• Supported
CCT (K)
• 2700K ~ 6500K
CRI
• ≥80
Beam Angle
• 90°
Housing Material
• Aluminium
Optics Material
• PC
Input Voltage
• AC 220-240V, 50/60Hz
Rated Power
• 10W
IP Rating
• IP54 (Below Ceiling)• IP40 (Inside Ceiling)
Operating Temperature
• -20℃ ~45℃
Installation Method
• Recessed Mounted
Cutout
• Ø90-95mm
Electrical Class
• Class II
IC-Rating
• IC-4
Luminous Flux
• 850-900lm
LED Driver
• Built-out
Lifespan
• Up to 50,000hr
Glow Wire Test
• 750℃
RGB
• Supported
CCT (K)
• 2700K ~ 6500K
CRI
• ≥80
Beam Angle
• 90°
Resources
Resources
Resources
DATA SHEET - KUP00553 - 01072026
INSTALLATION GUIDE - KUP00553 -...
USER MANUAL - KUP00553 - 01072026
DATA SHEET - KUP00553 - 01072026
INSTALLATION GUIDE - KUP00553 -...
USER MANUAL - KUP00553 - 01072026
DATA SHEET - KUP0...
INSTALLATION GUID...
USER MANUAL - KUP...
DATA SHEET - KUP00553 - 01072026
INSTALLATION GUIDE - KUP00553 - ...
USER MANUAL - KUP00553 - 01072026
